Daikin 3MKD58DVM User Manual

Removal of PCBs Si12-793

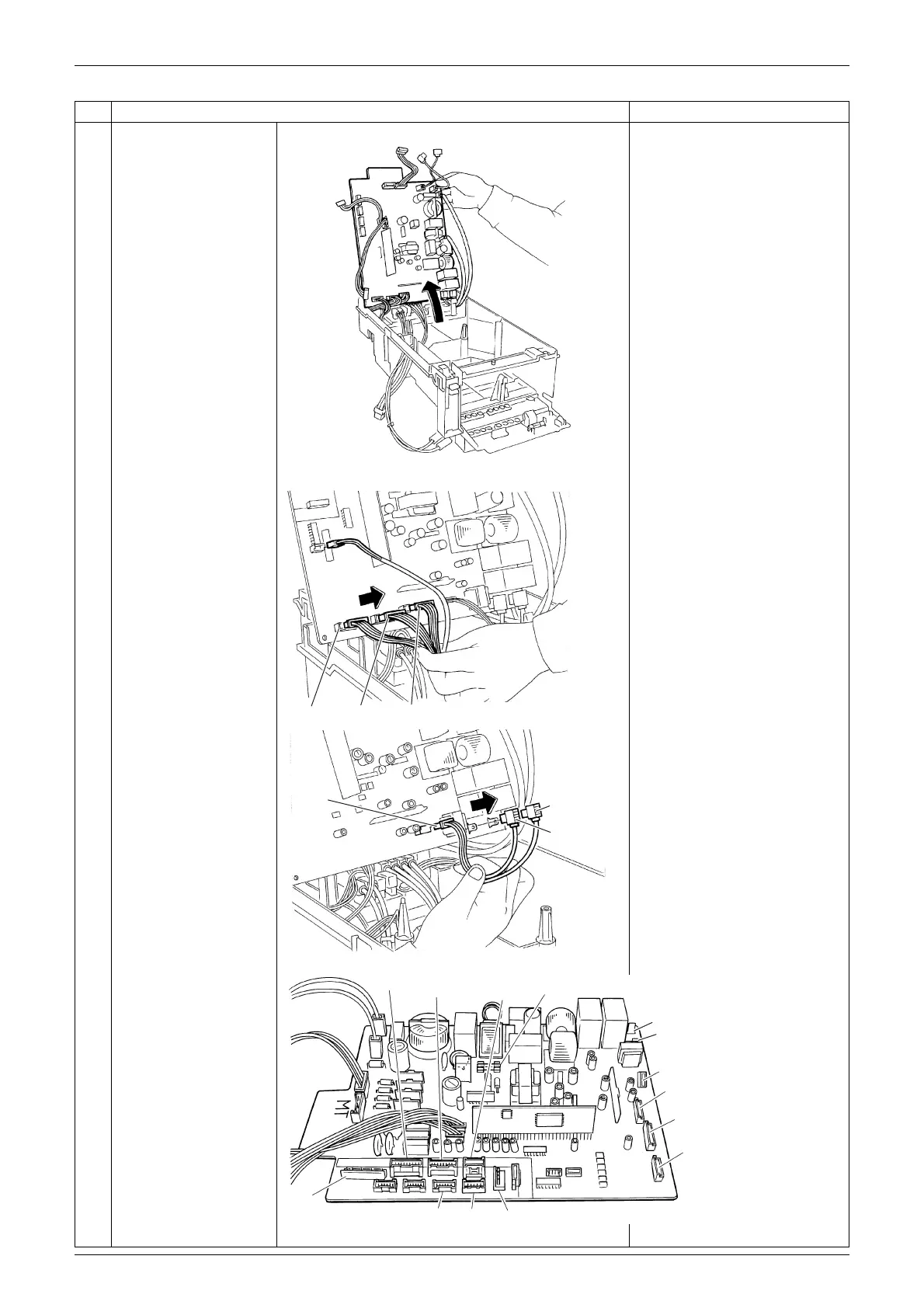

8 Removal Procedure
5
Lift up the main PCB.
6
Disconnect the
connectors [S31] [S32]
[S33] [S71] [H1] [H2].
7
The figure shows the
main PCB.
Step
Procedure Points
(R2181)
[S31] [S71] [S33]
(R10362)
[H1] (yellow)
[S32]
[H2] (blue)
(R10363)
[S80]
[S21]
[S20]
[S40]
[S31]
[S71]
[S33]
[S32]
[H2]
[H1]
FU2 (3.15A)
[S90]
[S92]
[S93]
(R10356)
