Daikin 3MKD75DVM User Manual

Si12-793 Removal of Sound Blankets
Removal Procedure 11

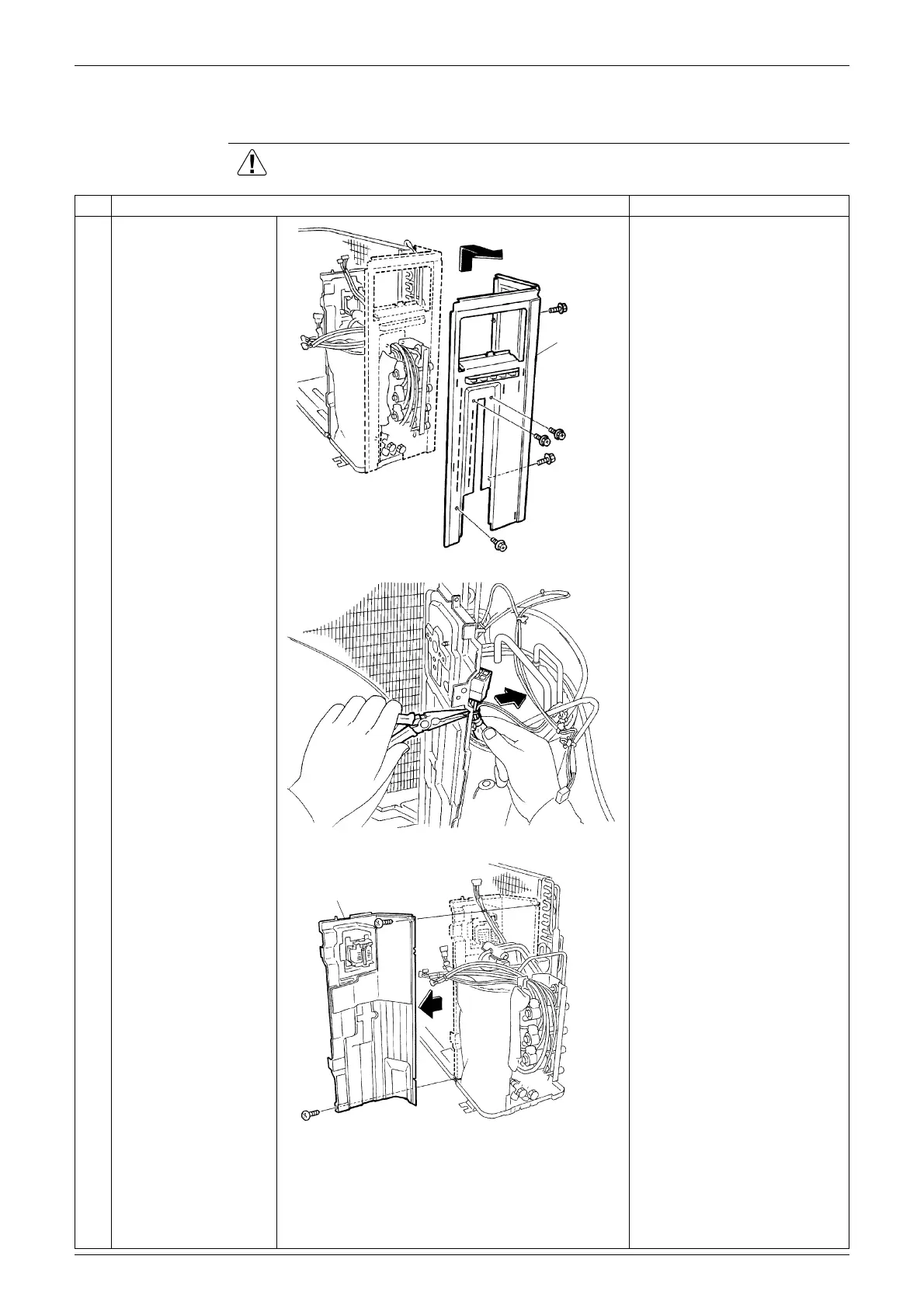

5. Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Remove the 5 screws
of the right side panel.
2
Release the clamp with
pliers.

Some models do not have
the clamp.
3
Remove the 2 screws
of the partition plate,
and remove the plate.
Right side
panel
(R2191)
(R16508)
Partition plate
(R11311)

Daikin 3MKD75DVM Specifications

General

Category	Inverter
Model	3MKD75DVM
Cooling Capacity	7.5 kW
Heating Capacity	8.6 kW
Power Supply	220-240 V, 50 Hz
Refrigerant	R32
Operating Temperature (Cooling)	10 to 46 °C
Operating Temperature (Heating)	-15 to 24 °C
Noise Level (Outdoor Unit)	49 dB(A)
