Daikin 3MKD75DVM - Thermistors Removal

Removal of Coils / Thermistors Si12-793
14 Removal Procedure
5

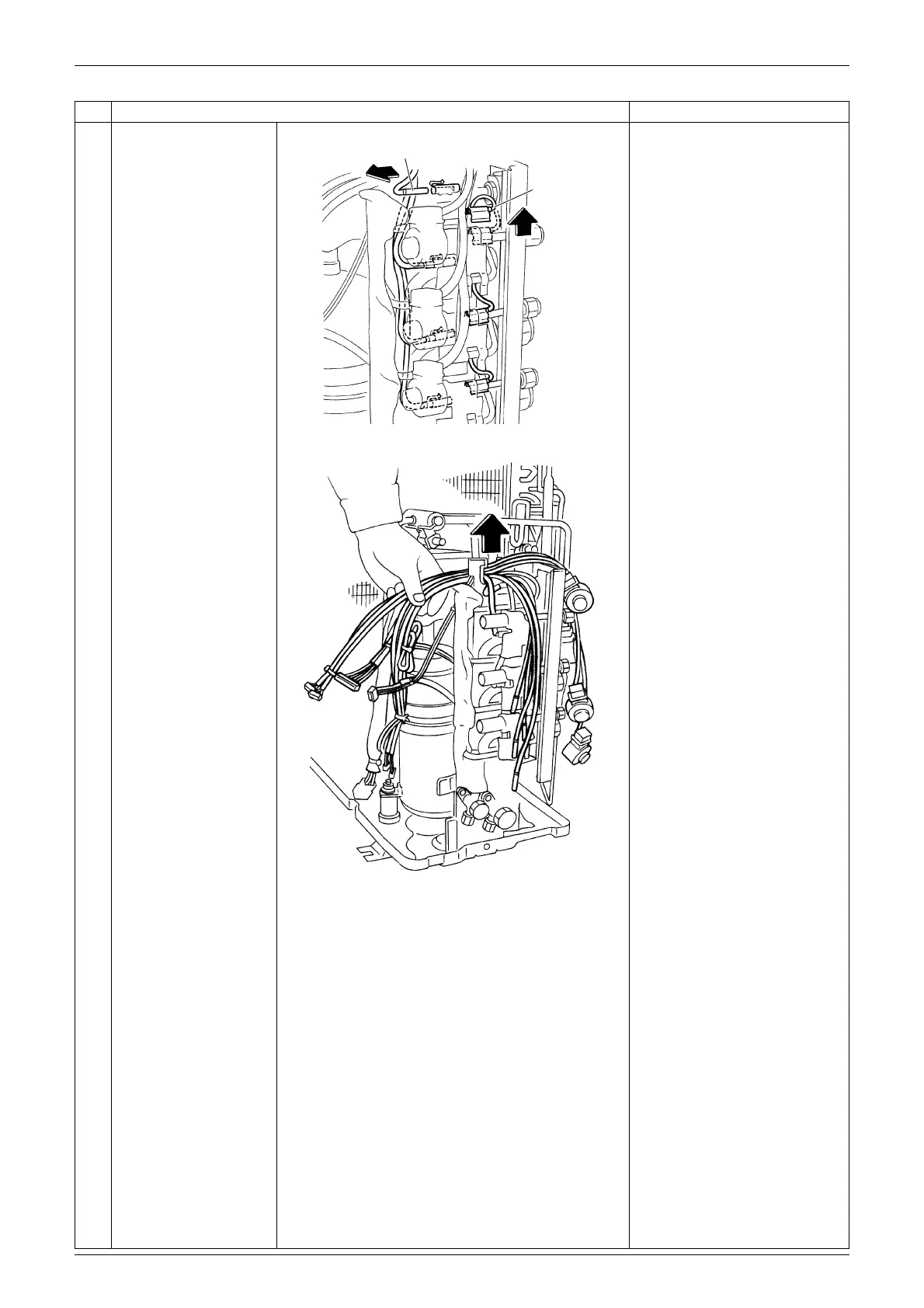

Peel off the putty and
pull out the thermistors.

Place the thermistor so that
its end comes up to the end
of the fixture.

Be careful not to lose the clip
or fixtures for the liquid and
gas pipe thermistor.
6
Remove the wire
harness.

[S90]:
Outdoor temperature thermistor
(Blue)
Heat exchanger thermistor
(Gray)
Discharge pipe thermistor
(Black)

[S92]: Gas pipe thermistor
Room A (Black)
Room B (Gray)
Room C (Brown)

[S93]: Liquid pipe thermistor
Room A (Black)
Room B (Gray)
Room C (Yellow)
Step
Procedure Points
(R2198)
Gas pipe thermistor
Liquid pipe
thermistor
(R2199)
