Removal of Sound Blankets Si121175
20 Removal Procedure
7. Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points

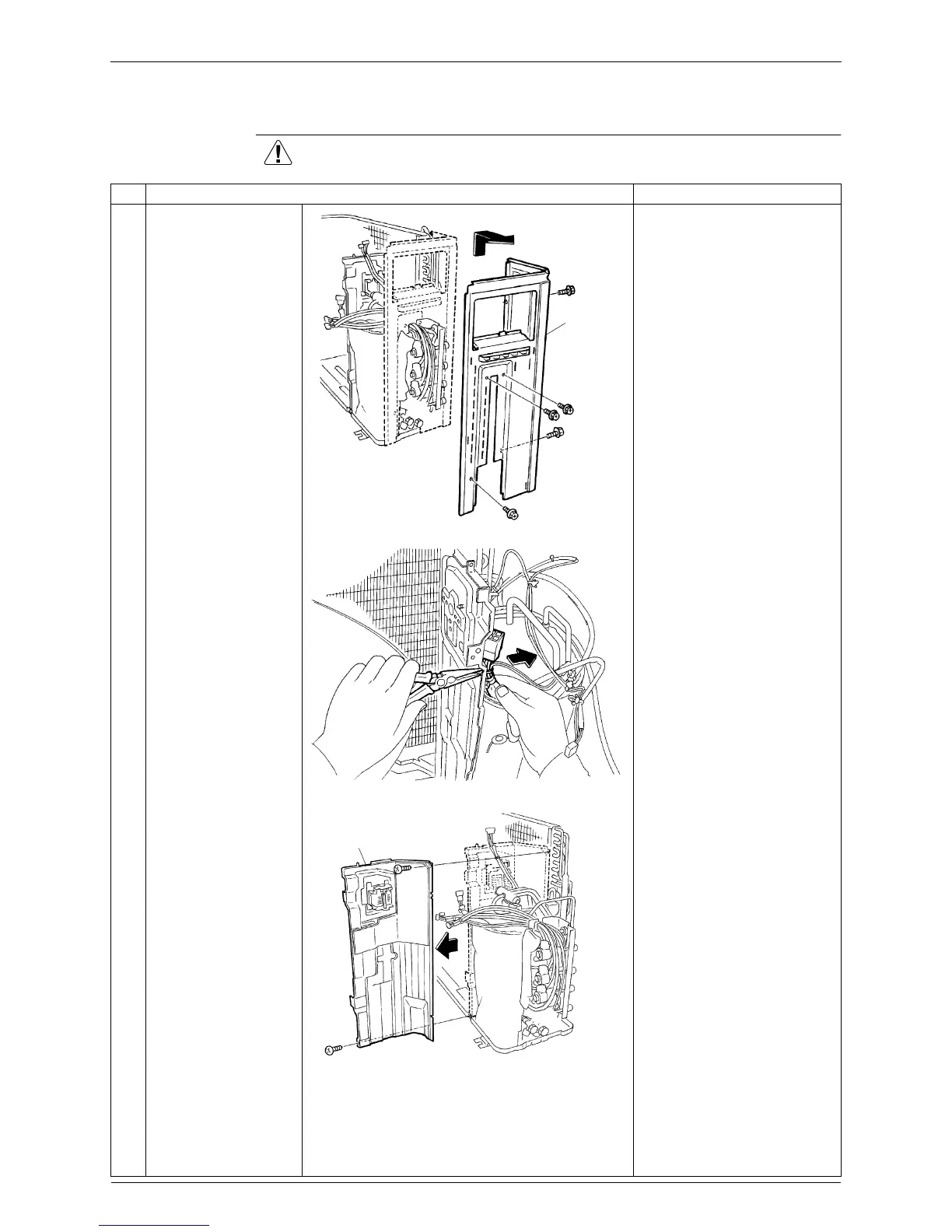

1
Remove the 5 screws
of the right side panel.
2
Release the clamp with
pliers.
3
Remove the 2 screws
of the partition plate,
and remove the plate.
Right side
panel
(R2191)
(R16508)
Partition plate
(R11311)
