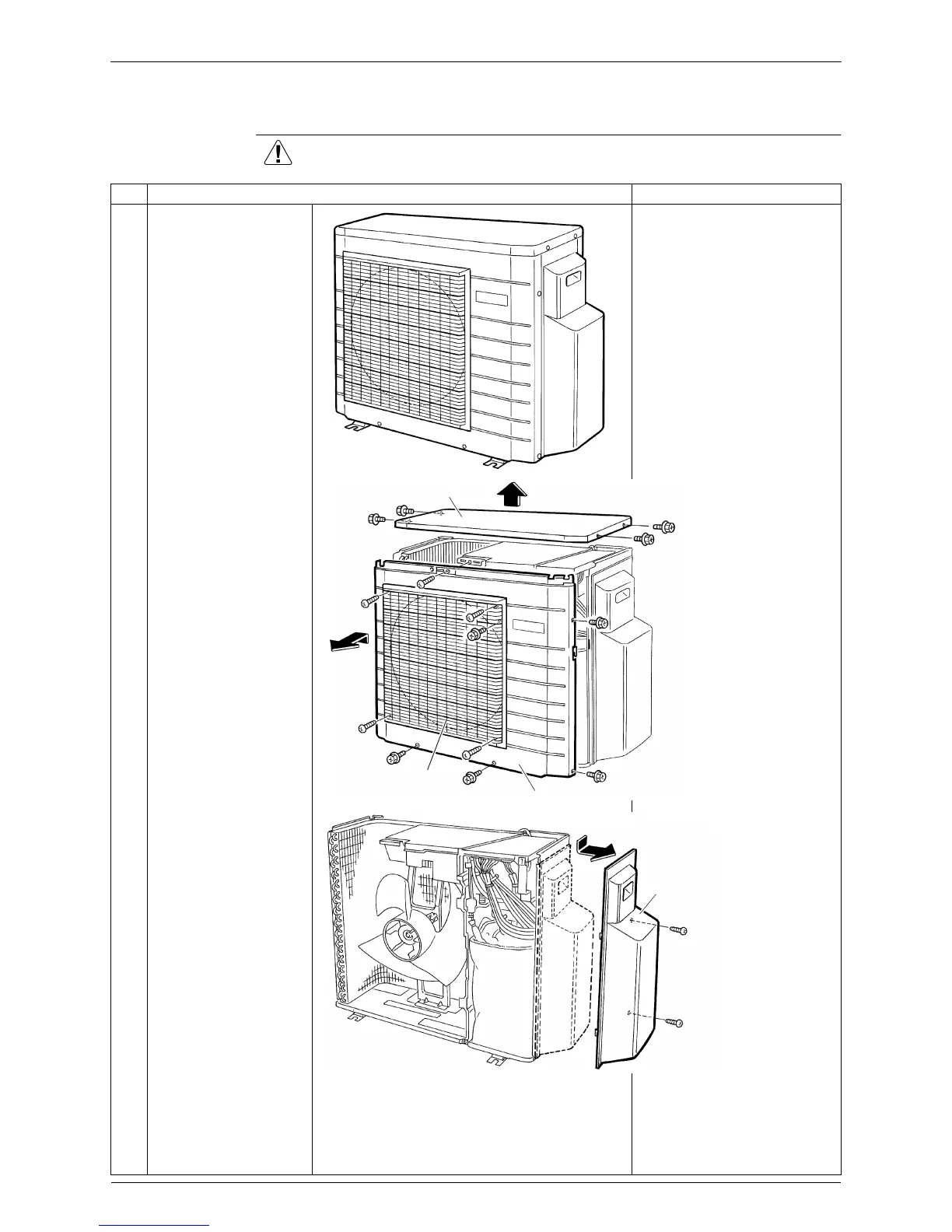

Removal of Outer Panels Si121175
2 Removal Procedure
1. Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
External appearance
2
Remove the 4 screws of
the top panel and the 6
screws of the front panel.
3
Remove the 4 screws of
the discharge grille.
4
Remove the 2 screws of
the piping cover.
(R2159)
Top panel
Discharge grille
Front panel
(R10351)
(R10352)
Piping cover
