Removal of Coils / Thermistors Si121175
22 Removal Procedure
8. Removal of Coils / Thermistors
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points

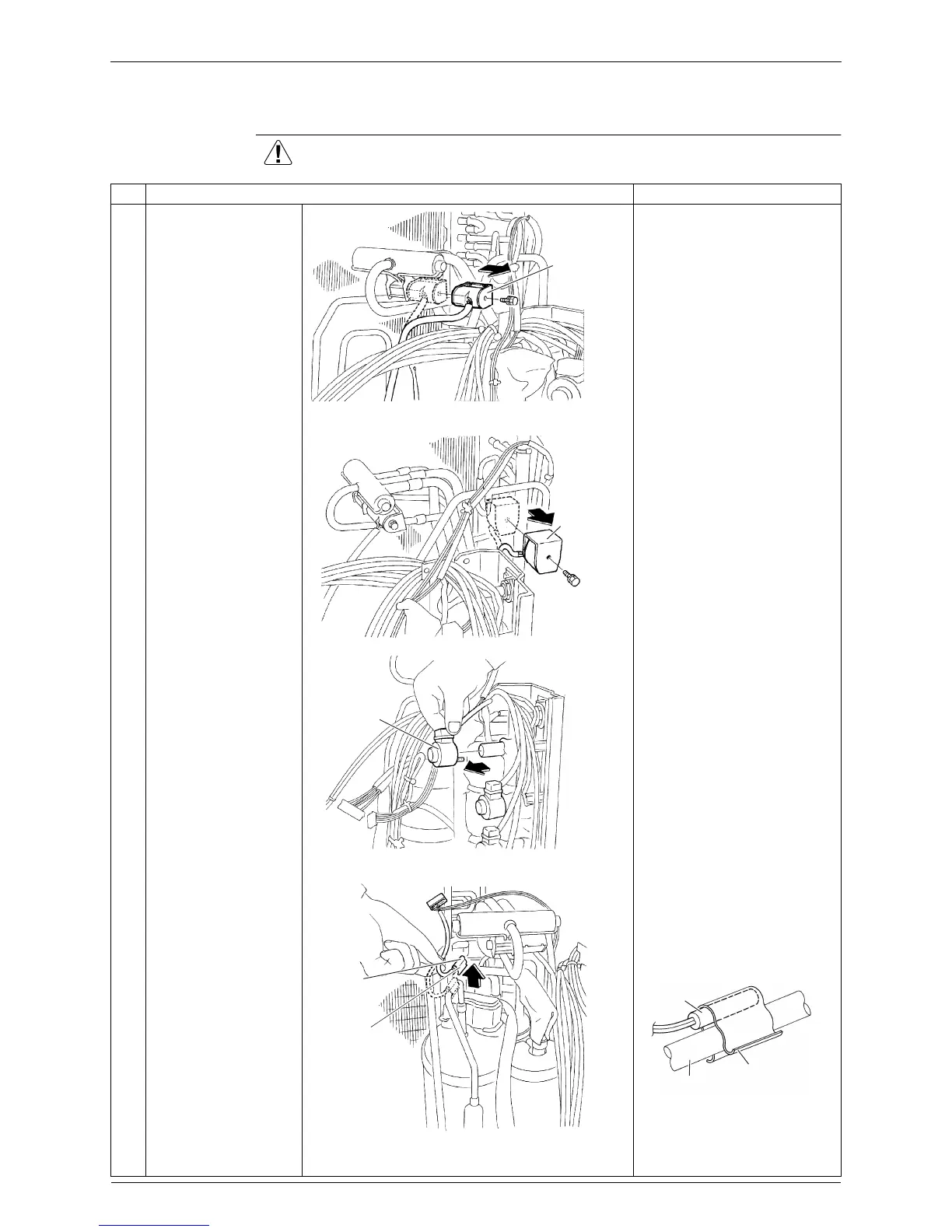

1
Remove the screw of
the four way valve coil.
2
Remove the screw and
remove the defrost
solenoid valve coil.

Only for the U.S. model
3
Remove the electronic
expansion valve coil for
each room.
4
Release the fixture and
remove the discharge
pipe thermistor.

Place the thermistor so that
its end comes up to the end
of the fixture.

Be careful not to lose the
fixture for the discharge pipe
thermistor.
Four way
valve coil
(R2194)
Defrost
solenoid
valve coil
(R2195)
Electronic
expansion
valve coil
(R2196)
(R10367)
Fixture
Discharge pipe
thermistor
Fixture
(R10536)
Pipe
Thermistor
