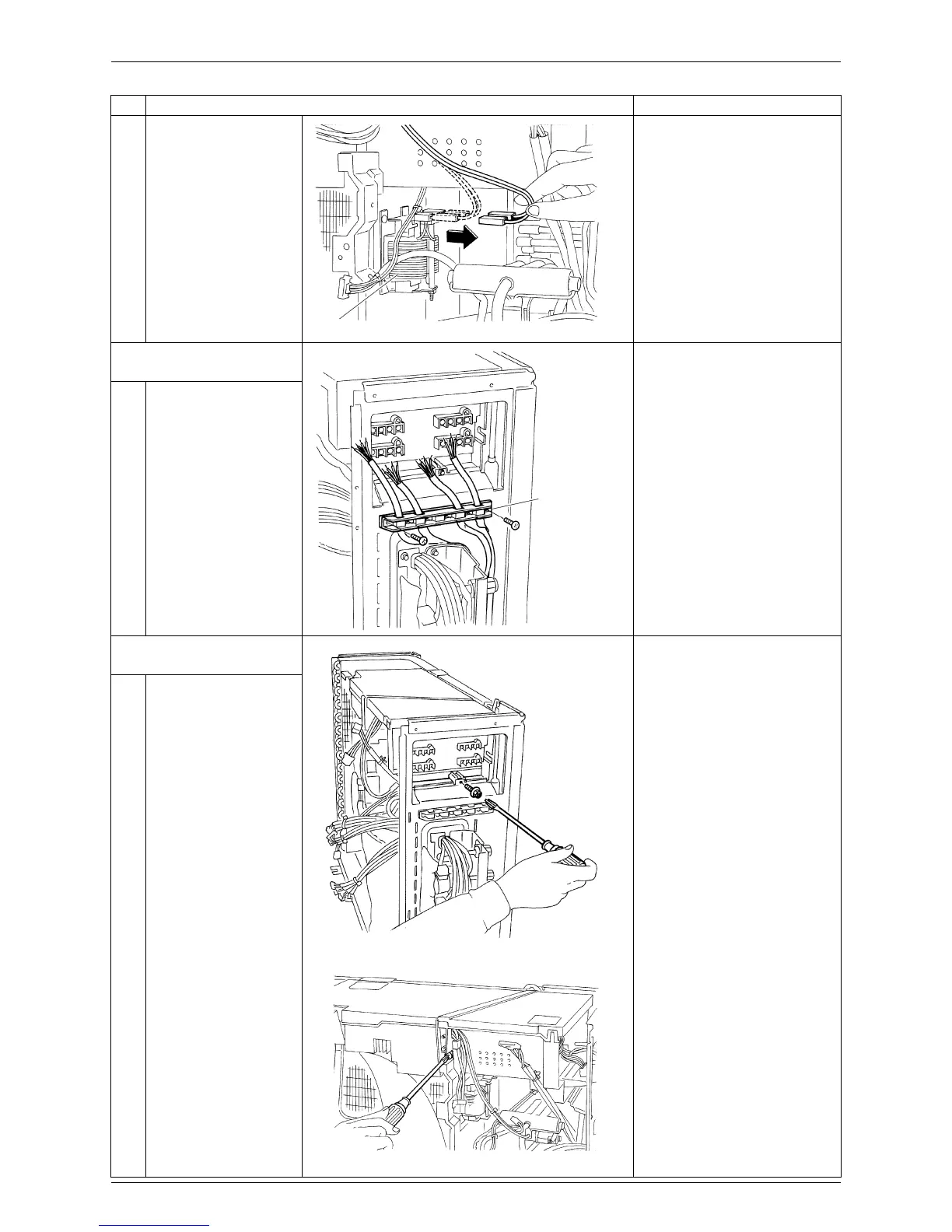

Si121175 Removal of Electrical Box (Pattern 1)
Removal Procedure 5
5
Remove the reactor
lead wires.
3. Remove the wire fixing
plate.
1
Remove the 2 screws
of the wire fixing plate.
4. Remove the electrical
box.
1
Remove the screw of
the electrical box.
2
Remove the screw of
the electrical box.
Step
Procedure Points
Reactor
(R2170)
(R11309)
Wire fixing
plate
(R2172)
(R2173)
