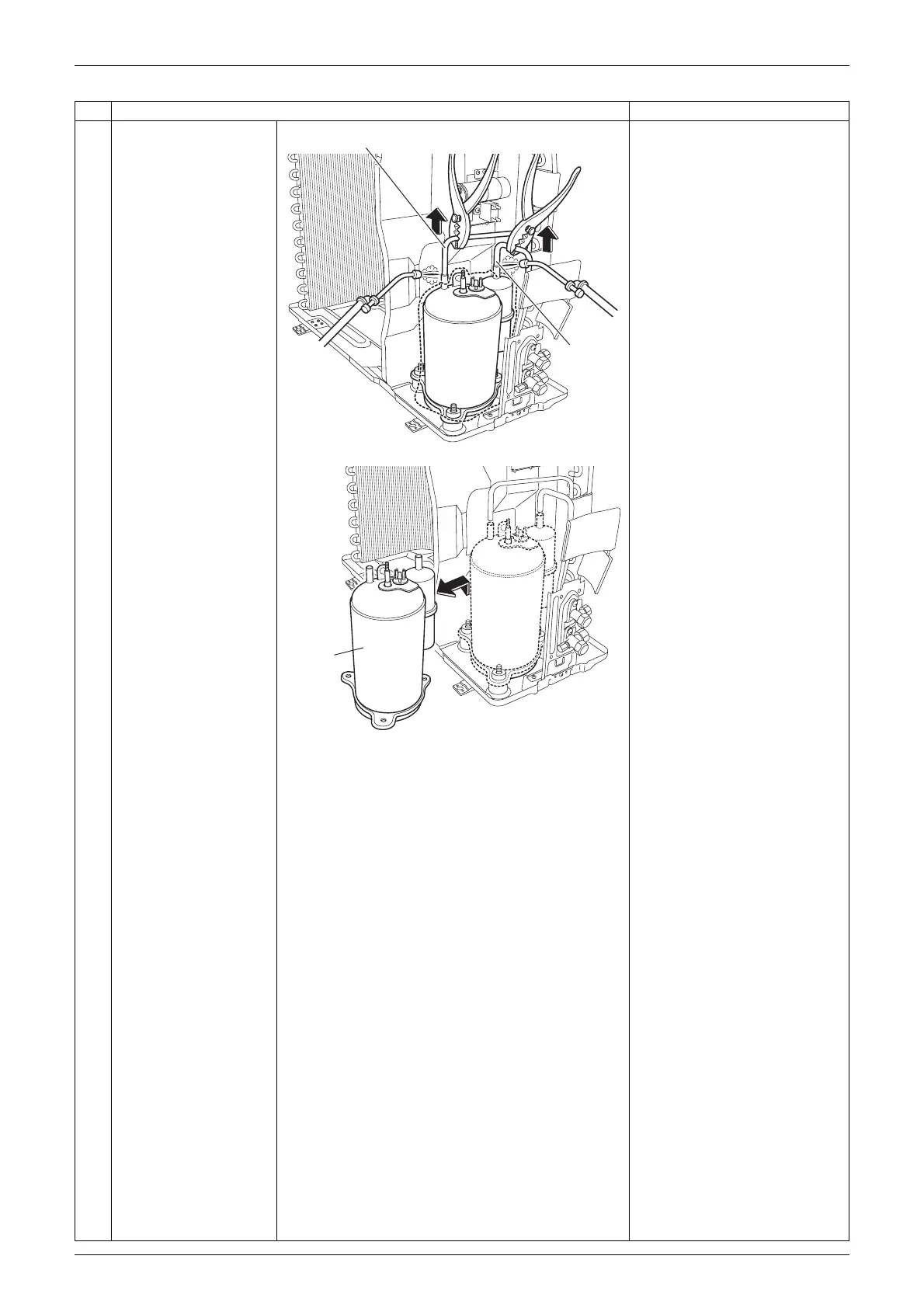

Compressor ASSY Si011356EA
14 Removal Procedure
5
6
Heat up the brazed part
of the discharge side
pipe and disconnect it.
Heat up the brazed part
of the suction side pipe
and disconnect it.
7
Lift the compressor
ASSY up and remove it.
Step Procedure Points
(R20750)
Suction
side pipe
Discharge side pipe
Compressor
ASSY
(R19335)
