Daikin ARM09MV2S - Outer Panels

Outer Panels Si011356EA

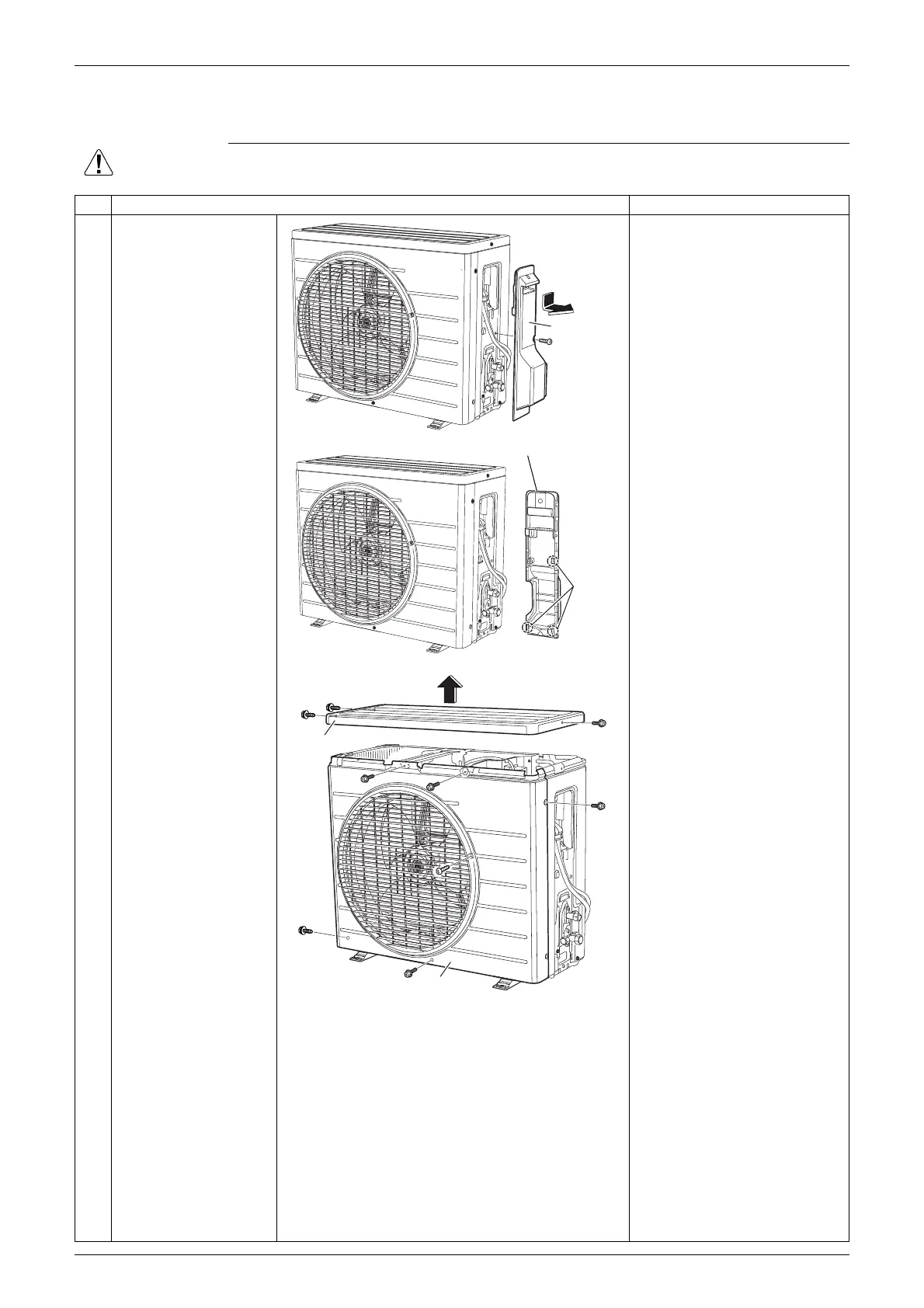

2 Removal Procedure
1. Outer Panels
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1
Remove the screw and
remove the stop valve
cover.

The stop valve cover is
united with the shield plate.

When reassembling, make
sure to fit the 3 hooks.
2
3
Remove the 3 screws
(left: 2 screws, right: 1
screw) and remove the
top panel.
Remove the 6 screws
of the front panel.
(R16329)
Stop valve
cover
(R16330)
Shield plate
Hook
Top panel
Front panel
(R16331)
