Daikin ARM09MV2S - Electrical Components

Electrical Components Si011356EA
6 Removal Procedure
3. Electrical Components
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

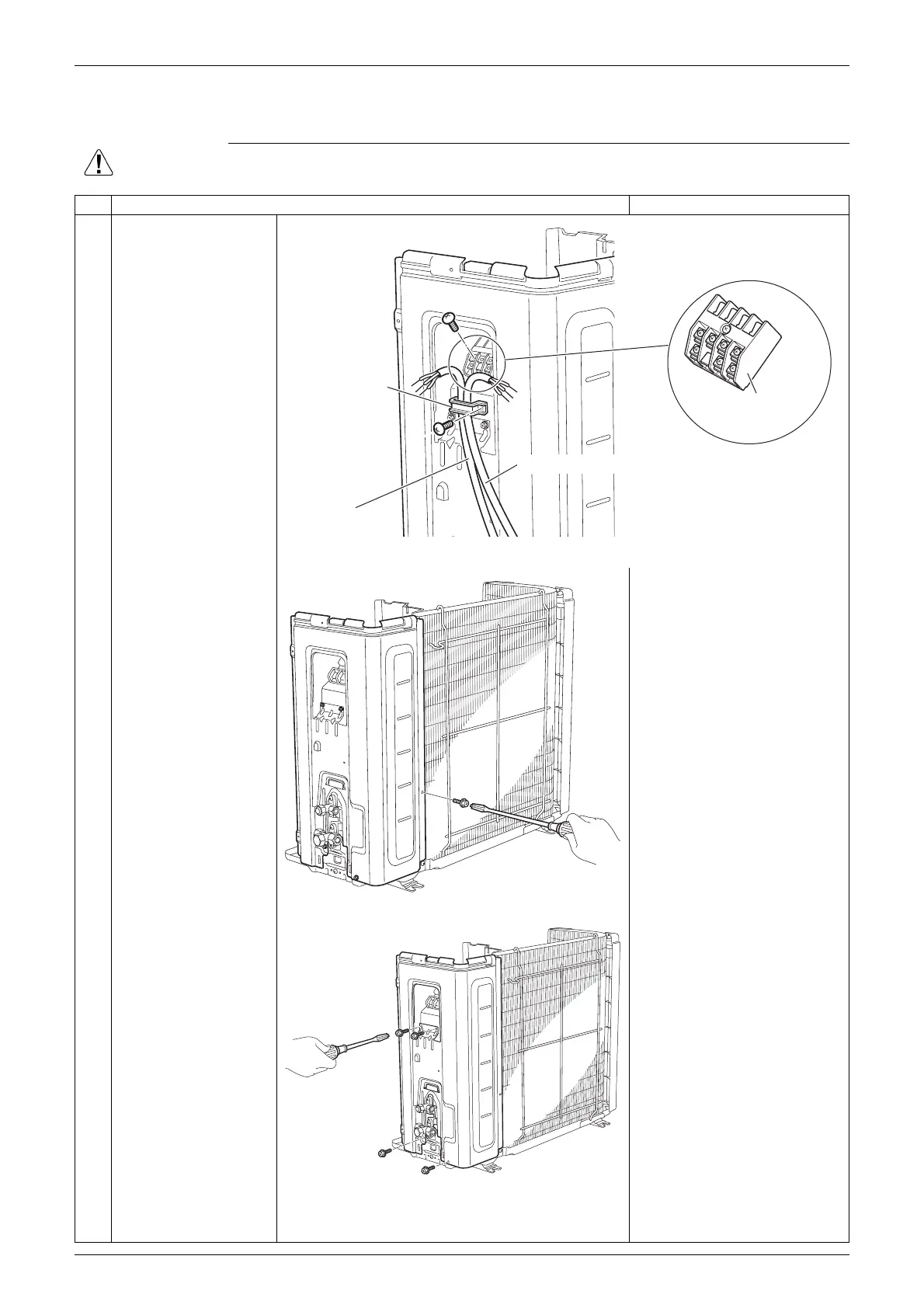

Step Procedure Points
1
2
Remove the 7 screws
on the terminal board
and disconnect the
connecting wire and the
power supply wire.
Remove the screw and
remove the wire fixture.
3
Remove the screw on
the rear side.
4
Remove the 4 screws
on the right side.
Terminal board
(R19328)
Wire fixture
Connecting wire
Power supply wire
(R15219)
(R20745)
