Daikin ARM09MV2S - Page 9

Si011356EA Electrical Components
Removal Procedure 7
5

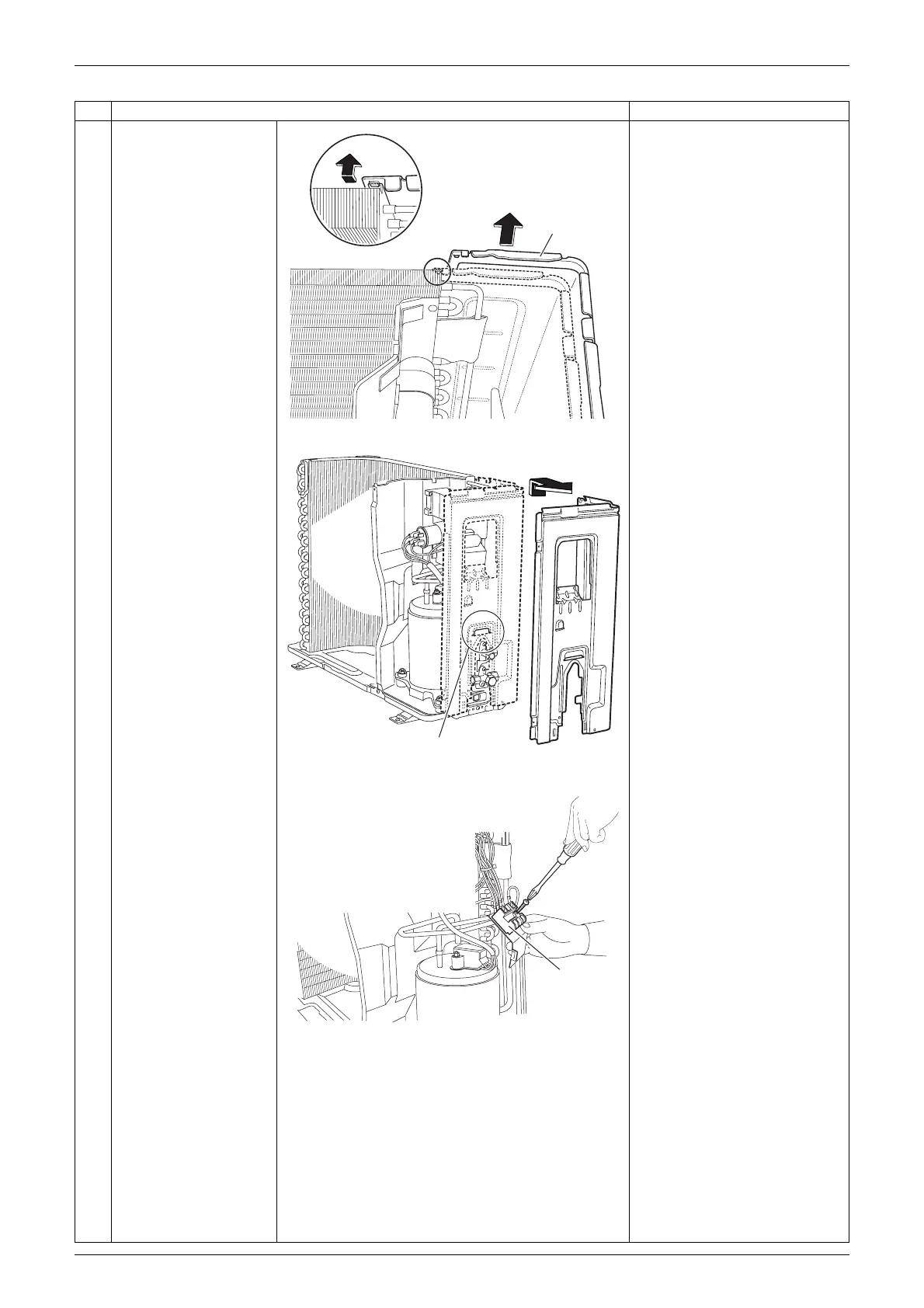

Unfasten the upper
hook.

When reassembling, make
sure to fit the hook.
6
Unfasten the hook and
remove the right side
panel.

When reassembling, make
sure to fit the hook.
7
Remove the screw of
the terminal board
(X1M).
Step Procedure Points
(R10467)
Right side panel
(R19329)
Hook
(R19246)
Terminal board
