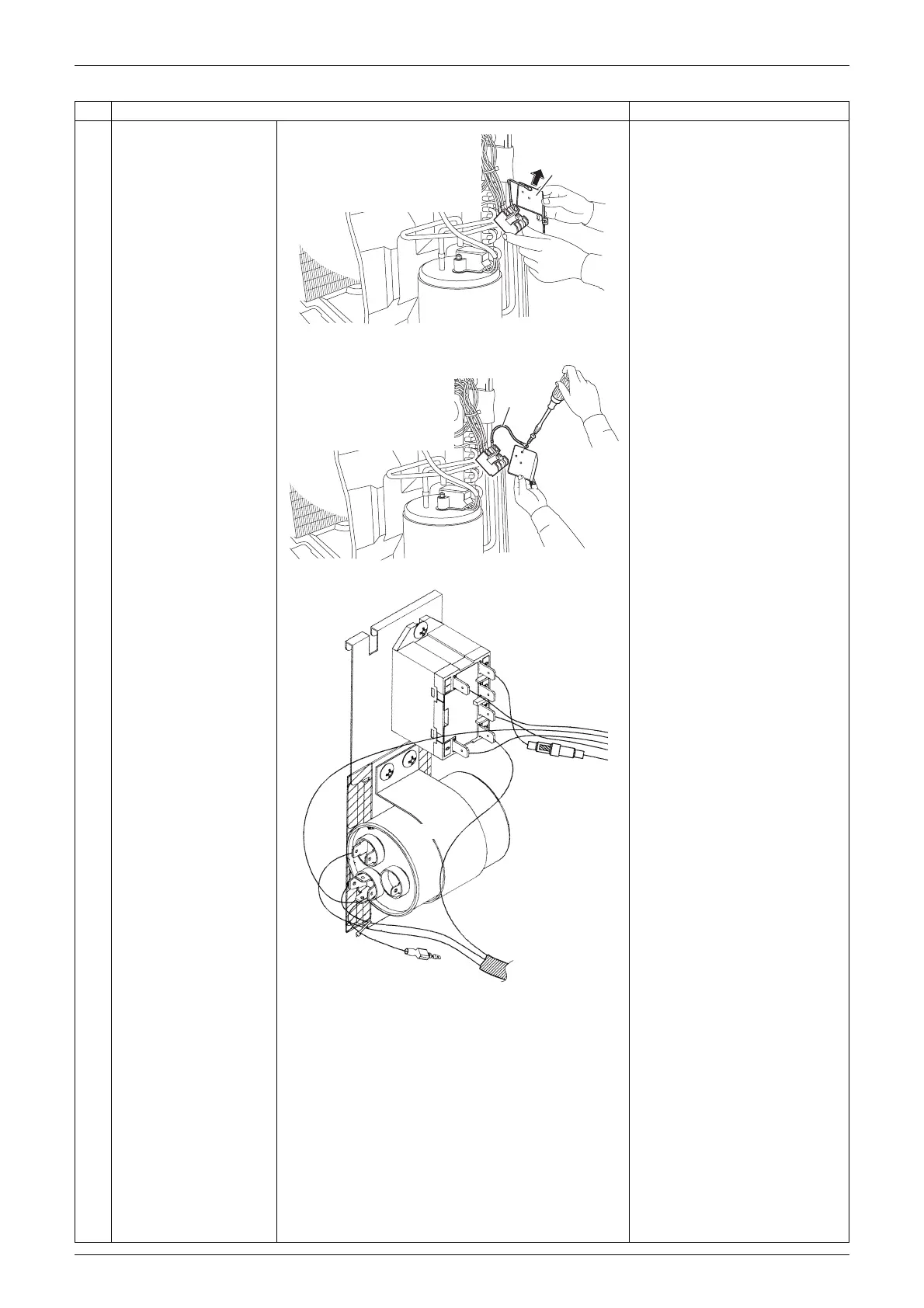

Electrical Components Si011356EA
8 Removal Procedure
8
Detach the fixing plate.
9
Remove the screw of
the earth / ground wire.
Parts layout
Step Procedure Points
Fixing plate
(R19247)
(R19248)
Earth /
ground
wire
K1M
C1R
(R19253)
