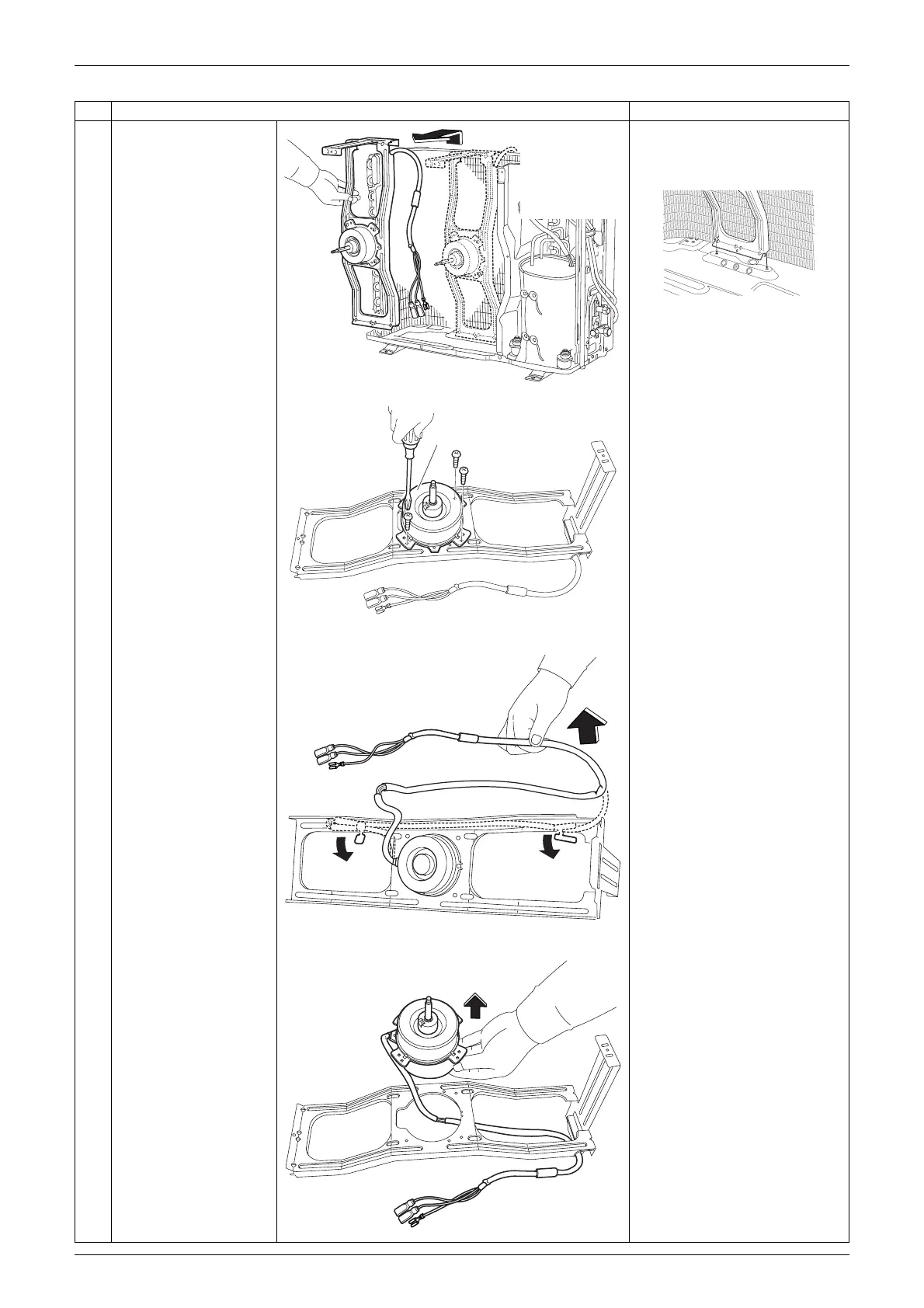

Si011356EA Outdoor Fan / Fan Motor
Removal Procedure 5
8
Remove the fan motor
fixing frame.

When reassembling, fit the
lower hooks into the bottom
frame.
9
Remove the 3 screws
and remove the fan
motor.

Screw size: M4 × 16
10
Release the harness
from the hooks.
11
Remove the fan motor.
Step Procedure Points
(R19245)
(R10460)
(R10461)
Fan motor
(R15207)
(R15208)
