Daikin ARM09MV2S - Page 5

Si011356EA Outer Panels
Removal Procedure 3
4

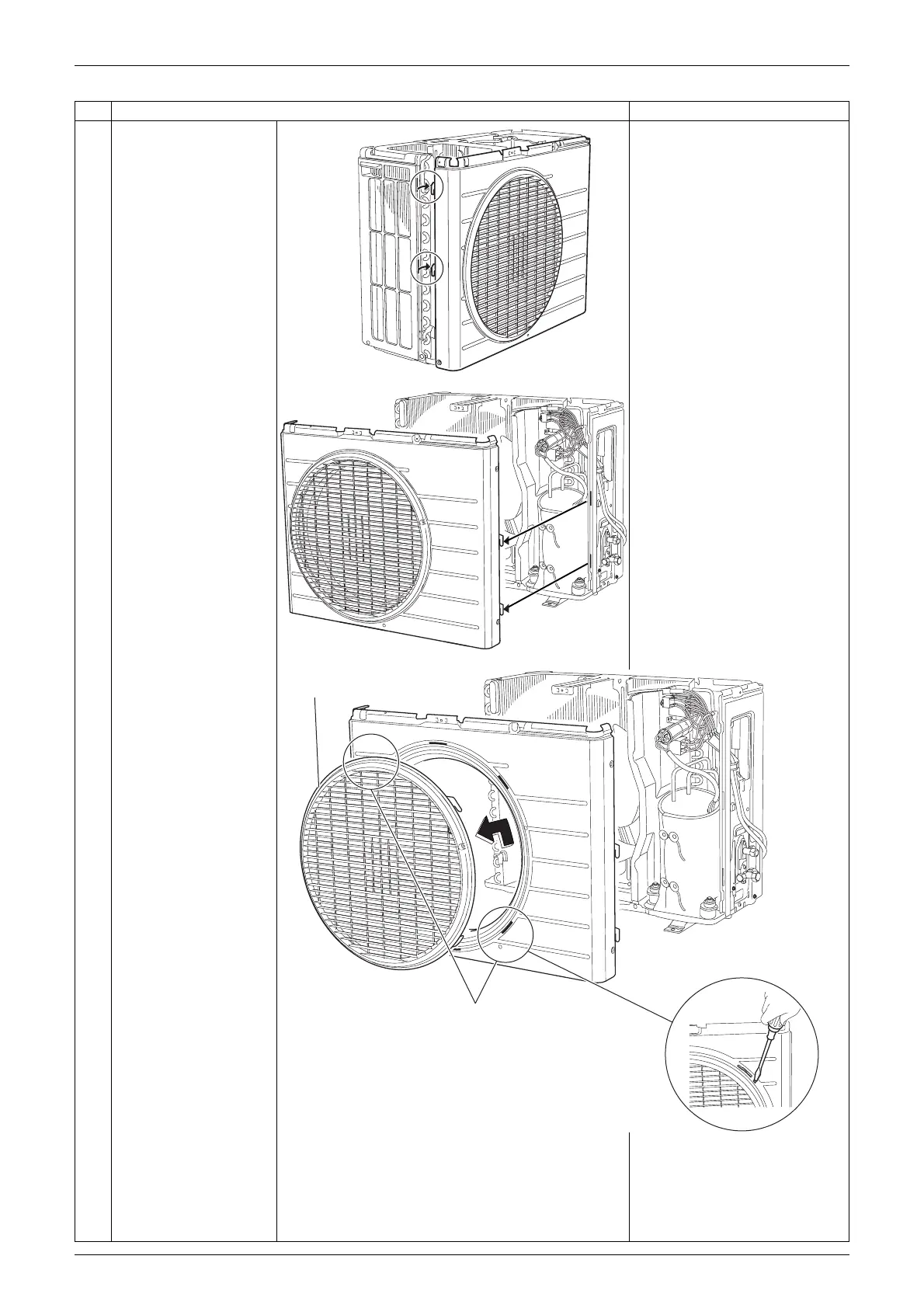

Lift up the left side and
unfasten the hooks.
5
Release the right side
hooks and remove the
front panel.
6
Press the 2 projections
from the rear side and
rotate the discharge
grille to remove it.
Step Procedure Points
(R20743)
(R20744)
Projection (rear side)
(R16323)
Discharge grille
