Si011359EA Outer Panels

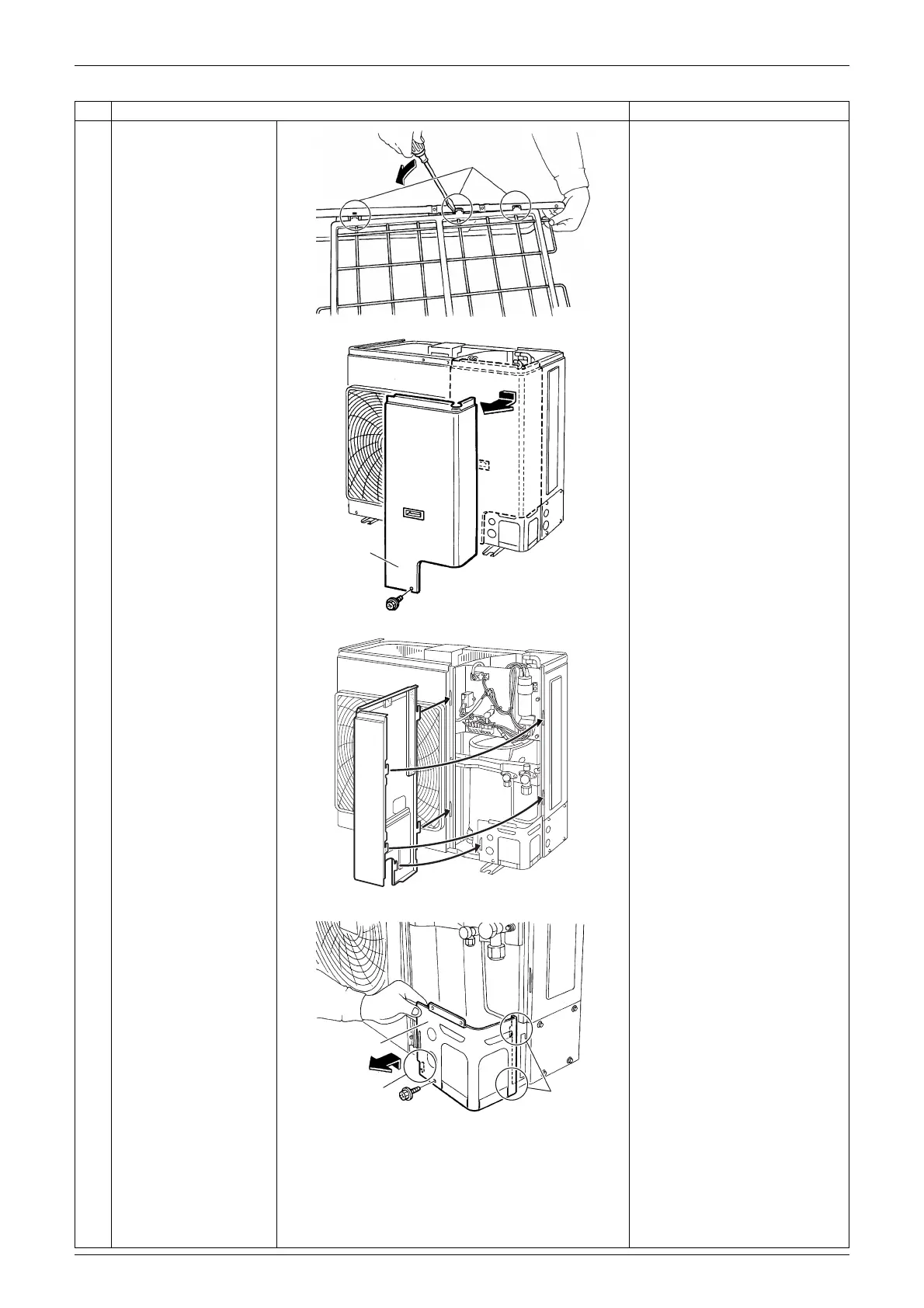

Removal Procedure 3
4 Unfasten the 3 hooks
with a flat screwdriver
and remove the suction
grille.
5 Remove the screw and
remove the front panel
(2).

When reassembling, fit the 5
hooks.
6 Remove the screw and
remove the piping cover
(front).

When reassembling, fit the 3
hooks.
Step Procedure Points
Hook
(R5427)
Front
panel
(2)
(R12807)
(R12808)
Piping cover
(front)
Hook
Hook
(R13234)
