Daikin ARM24MV2S User Manual

Electrical Component ASSY Si011359EA

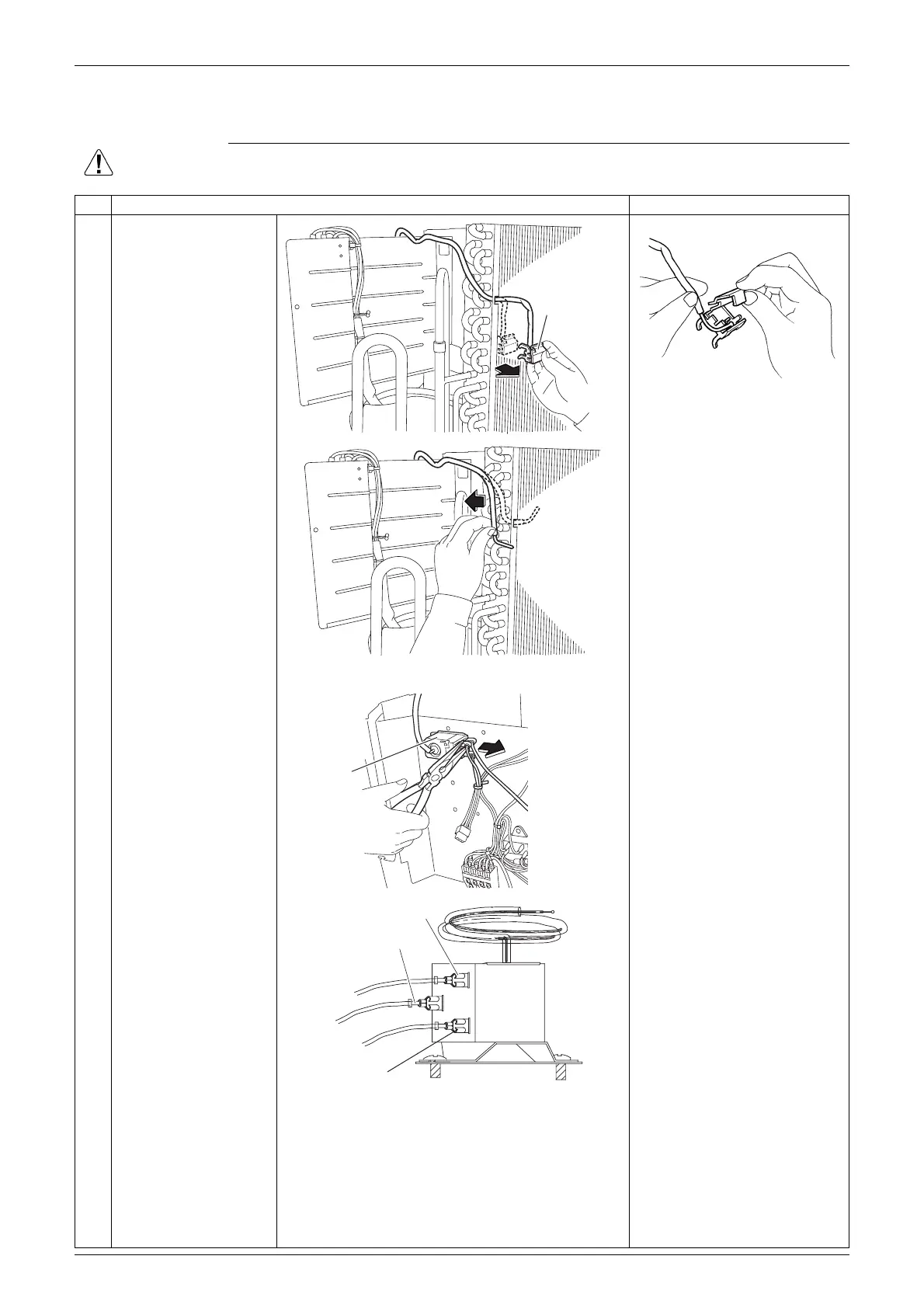

8 Removal Procedure
3. Electrical Component ASSY
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Detach the outdoor
temperature sensor.

Remove the sensor fixing
plate.
2 Disconnect the
terminals of the outdoor
temperature thermostat
(S1T).

K1M: magnetic contactor
(R12813)
Outdoor
temperature
sensor
(R12814)
(R17451)
(R19299)
Outdoor
temperature
thermostat
(S1T)
to fan motor: orange
to fan motor: black
(R20871)
L
H
C
to K1M (5): white
