Daikin ARM24MV2S User Manual

Si011359EA Electrical Component ASSY
Removal Procedure 9

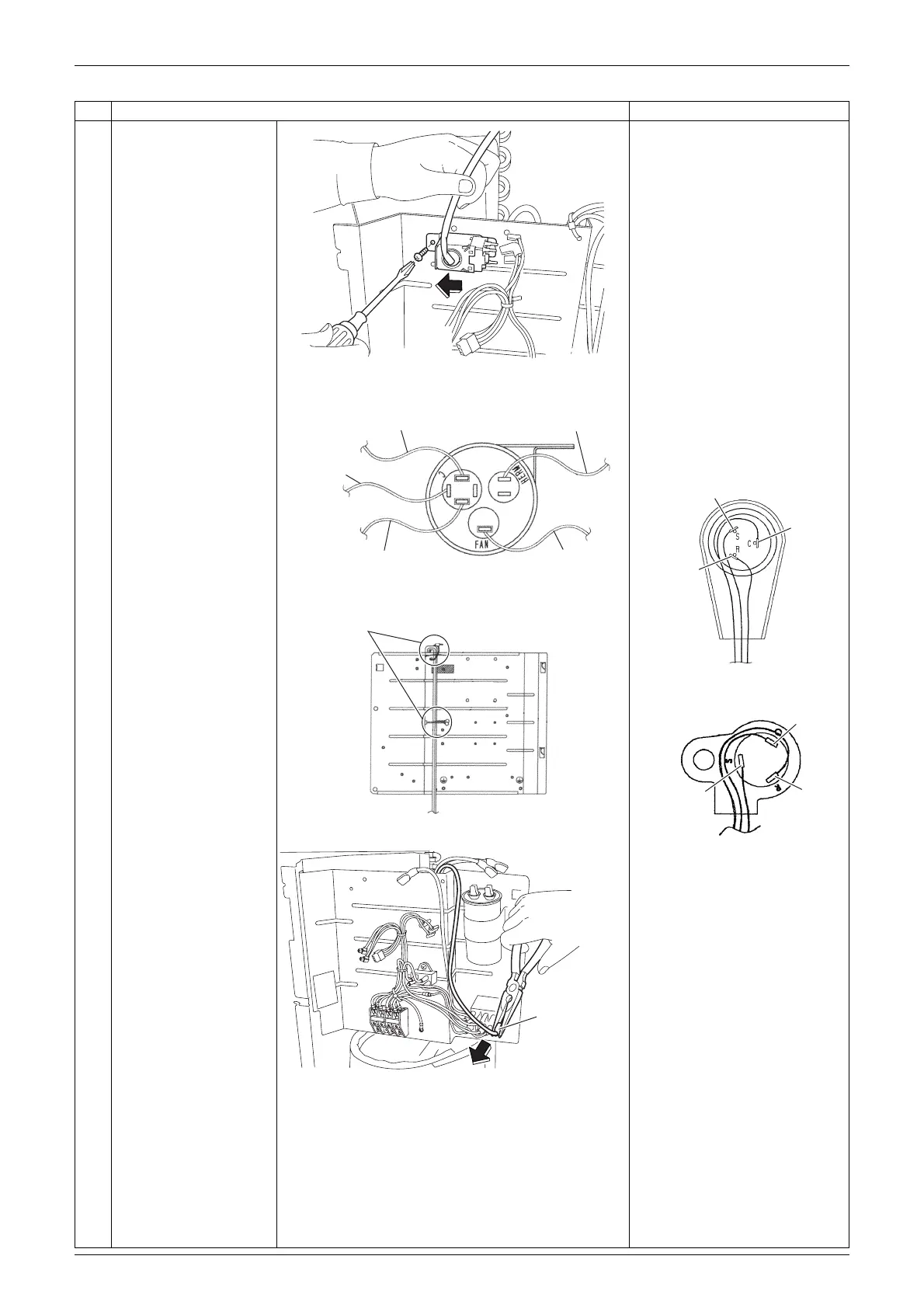

3 Remove the left screw
and slide the outdoor
temperature thermostat
to the left to remove it.

If it is difficult to remove the
outdoor temperature
thermostat, loosen the right
screw.
4 Disconnect the
terminals from the
compressor capacitor
(C1R).

X1M: terminal board

Compressor lead wire
Pattern 1
Pattern 2
S: yellow
C: blue
R: red
5 Remove the 2 clamps
on the rear side.
6 Disconnect the blue
terminal from the
magnetic contactor
K1M (1).
Step Procedure Points
(R19288)
(R20872)
to X1M (3):
black
to fan motor:
red
to fan motor:
white
to compressor
(R terminal): red
to compressor
(S terminal): yellow
(R20873)
S
R
C
(R20874)
S
C
R
(R19292)
to compressor
Clamp
(R20875)
to compressor
(C terminal):
blue
