Electrical Component ASSY Si011359EA

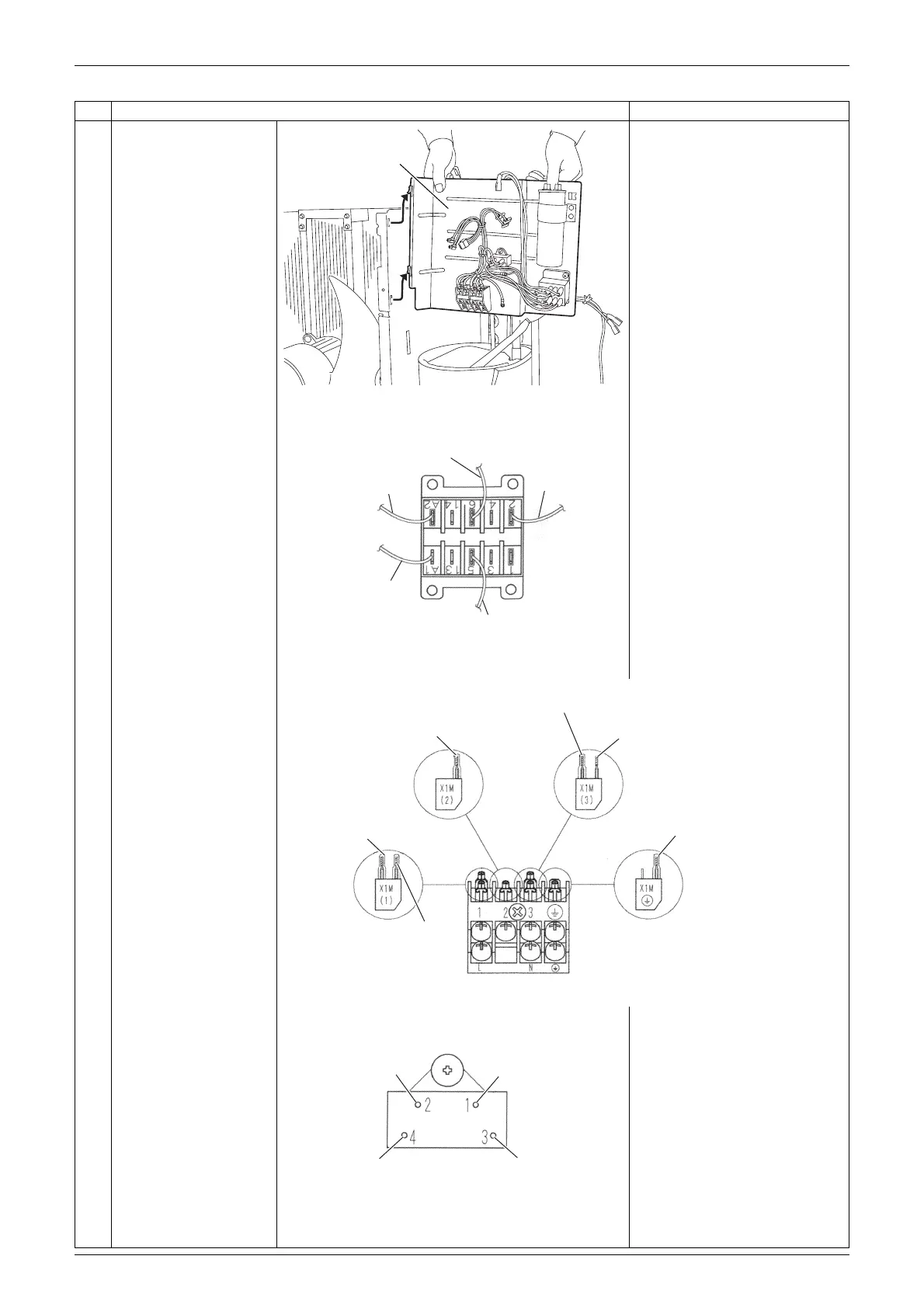

10 Removal Procedure
7 Lift the electrical
component ASSY to
unfasten the 2 hooks
and remove it.

When reassembling,
connect the wirings to the
correct position.
Step Procedure Points
(R20876)
Electrical
component ASSY
to X1M (1): red (fuse)
to V1R (3): black
to V1R (4): black
to outdoor temperature
thermostat (C): white
to X1M (1): red
(R20877)
Magnetic contactor (K1M)
to K1M (6): red (fuse)
to V1R (2): white
to K1M (2): red
Terminal board (X1M)
Earth / ground wire:
green / yellow
to C1R (C): black
to V1R (1): white
(R20878)
to X1M (2): white
to X1M (3): white
to K1M (A1): black
Rectifier (V1R)
to K1M (A2): black
(R20879)
