Outdoor Fan / Fan Motor Si011359EA
6 Removal Procedure
2. Outdoor Fan / Fan Motor
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

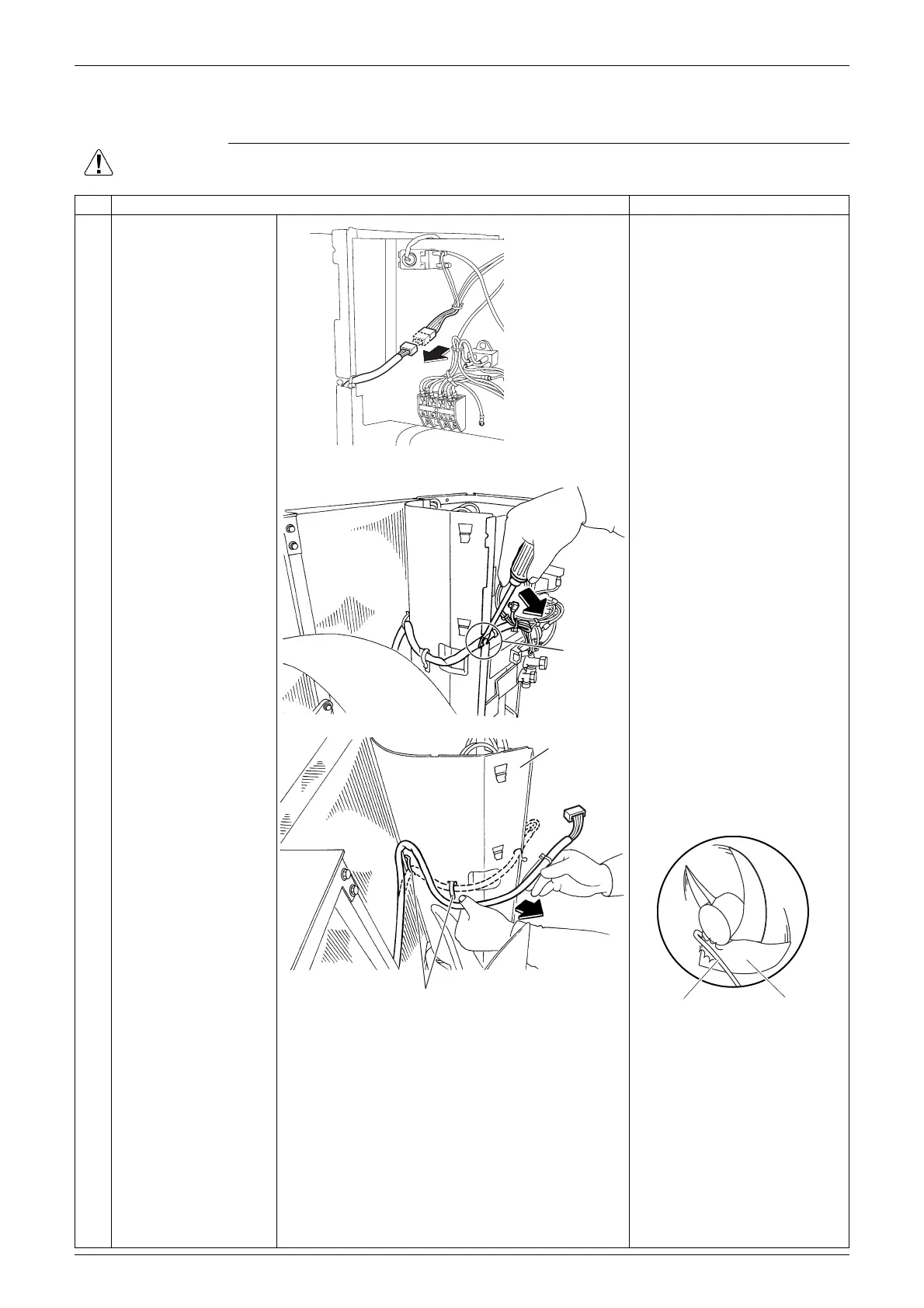

Step Procedure Points
1 Disconnect the relay
connector for the fan
motor.
2 Unfasten the hook with
a flat screwdriver.
3 Unfasten the 2 hooks
and release the fan
motor lead wire from
the partition plate.
Put the fan motor lead wire
through the back of the fan
motor when reassembling so
as not to be entangled with
the outdoor fan.
(R19298)
Hook
(R5436)
(R20870)
Partition plate
Hook
(R3249)
Lead wire Outdoor fan
To Next Page
