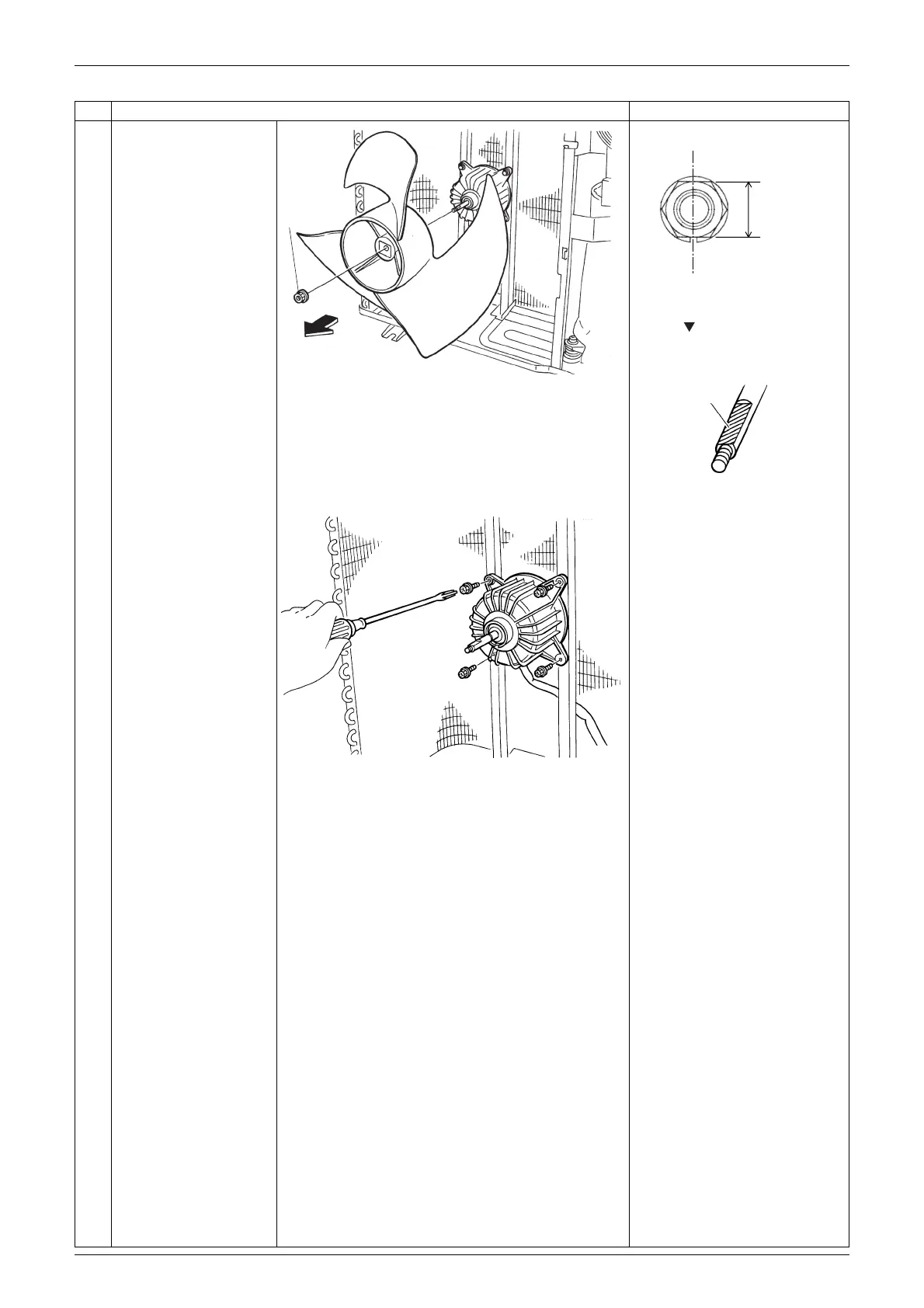

Si011359EA Outdoor Fan / Fan Motor
Removal Procedure 7
4 Remove the nut and
remove the outdoor fan.
Nut size: M8
When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
5 Remove the 4 screws
and remove the fan
motor.
Be sure to remove the lower
screws first. If the upper
screws are removed first, the
fan motor may tilt or fall
because the center of its
gravity is toward the front.
It may cause injuries.
Screw size: M5 × 16
Step Procedure Points
Nut
(R19285)
(R19286)
13 mm
(0.51 inch)
(R12834)
D-cut
(R5439)
To Next Page
