1. Features

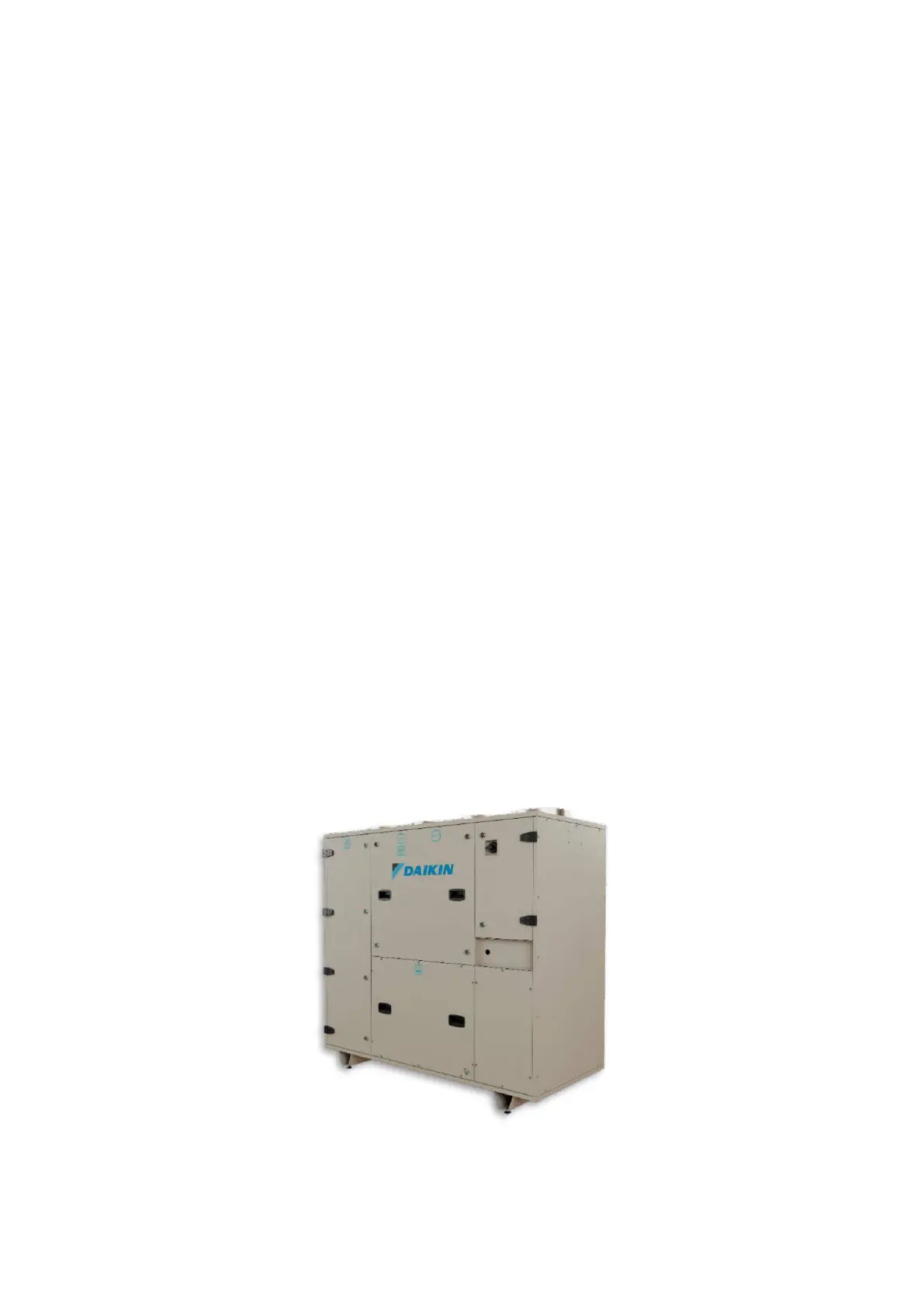

Heat recovery unit with top connections for decentralised ventilation system
• Available in 5 sizes with an air flow from 200 m
3
/h up to 4200 m
3
/h, ErP 2018 compliant
• More than 500 Pa of external static pressure, depending on model size and conditions
• Smallest size is 550 mm wide, while the biggest size only 890 mm
• Energy saving solution thanks to the 100% automatic bypass
• Reduced energy consumption thanks to EC fan technology and IE5 motor efficiency
• Free-cooling operation and energy efficient defrost logic
• Aluminium counter flow plate heat exchanger with efficiency up to 93%
• Up to three filters on supply side, up to ePM2.5 50% (M5) + ePM1 50% (F7) + ePM1 80% (F9)
• CO2 level management thanks to optional CO2 sensor
• 50 mm double skin panels, mineral wool insulated
• Modbus and BACnet compatible (accessory)
• DX, water and electric coil available as option
• Mixing damper to allow mix/recirculated air operation, available as accessory
• Ideal solution for light commercial applications as: retail shops, small and large offices, hotels, gyms,
cinemas, theatres, school, colleges, universities, etc
• Left or right hand version
• Smart (Daikin F1-F2/P1-P2 communication protocol) or Pro (Open protocol) version
