2. Unit Description and configurations

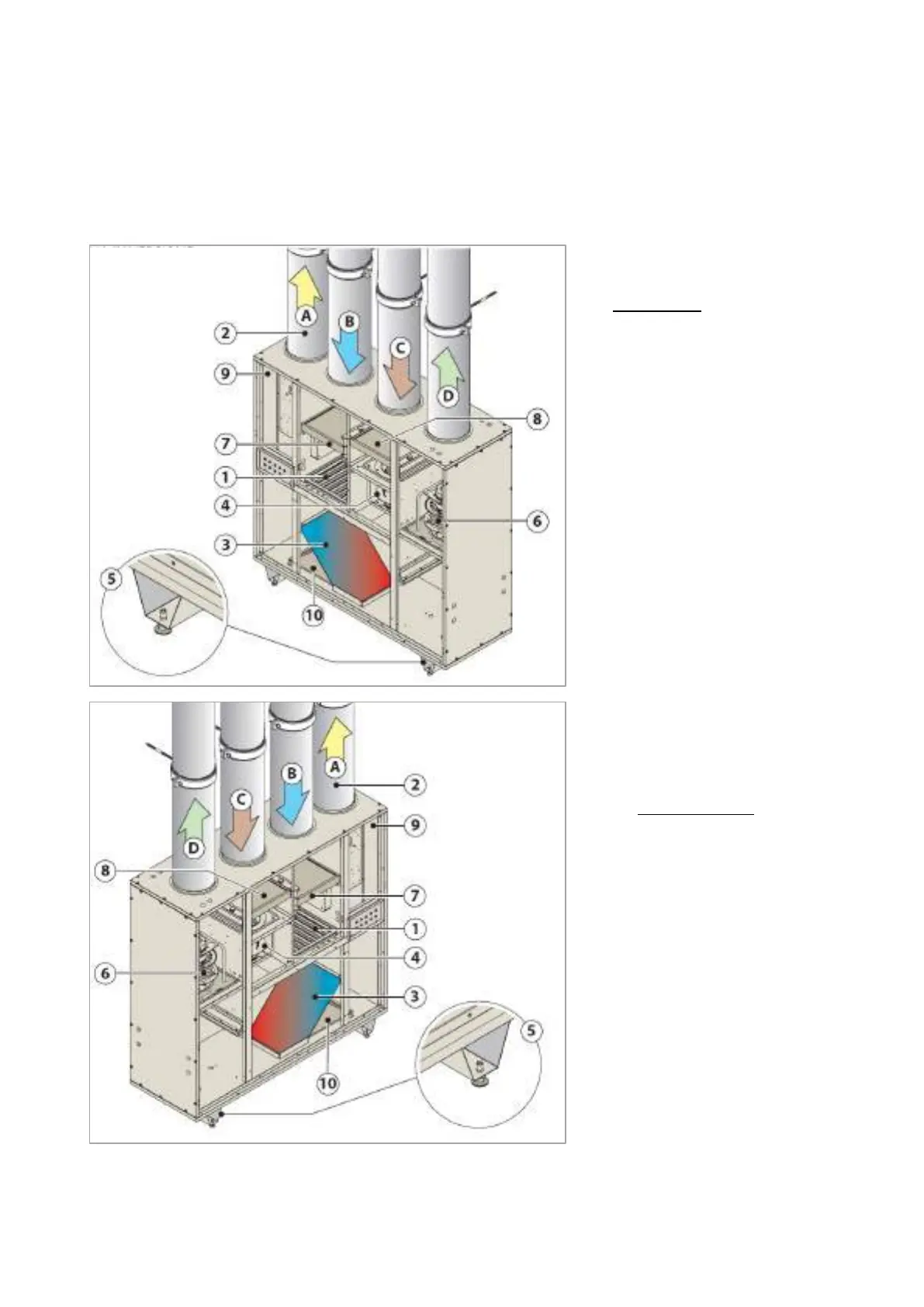

Components:
1. Bypass damper
2. Ducts
3. Heat Exchanger
4. Return fan
5. V – Shaped feet
6. Supply fan
7. Supply filter
8. Return Filter
9. Control
10. Drain Pain
Airflow direction
A. Exhaust air
B. Fresh air
C. Return air
D. Supply air
Modular T is available in two configurations for connection side, right and left (looking to the position of
supply air flow standing in front of the installed unit).
Left version
Right version
