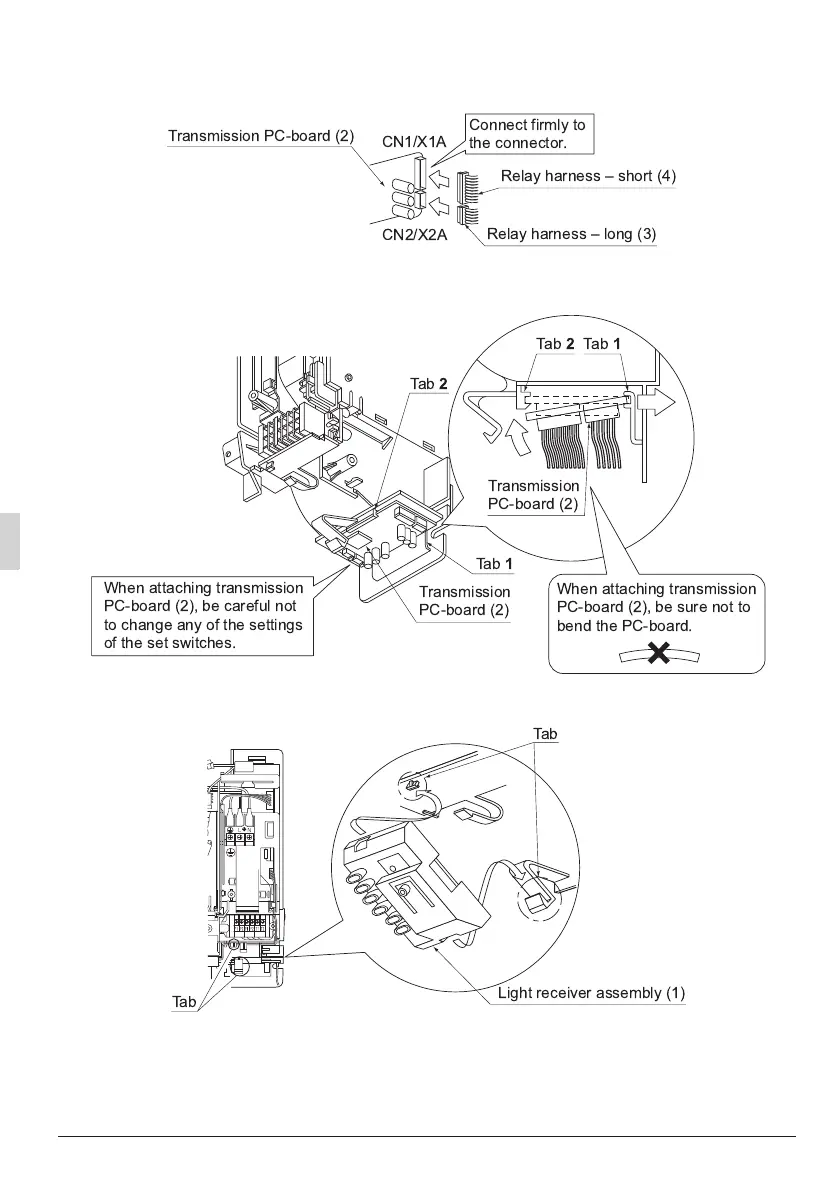

(3) Attaching the receiver
1. Connect the included relay harness – long (3) and relay harness – short (4) to the connector
on the transmission PC-board (2).
2. Following the figure, insert transmission PC-board (2) into tab 1, then insert into tab 2 while pushing
tab 1 in the direction of the arrow.
3.
Attach the included light receiver assembly (1) to the 2 tabs on the indoor unit, according to following figure.
CN1/X1A
CN2/X2A
Transmission PC-board (2)
Connect firmly to
the connector.
Relay harness  short (4)
Relay harness  long (3)
Tab
Tab
Tab 
Tab 
Transmission
PC-board (2)
Transmission
PC-board (2)
When attaching transmission
PC-board (2), be sure not to
bend the PC-board.
When attaching transmission
PC-board (2), be careful not
to change any of the settings
of the set switches.
Tab
Tab
Light receiver assembly (1)
