23

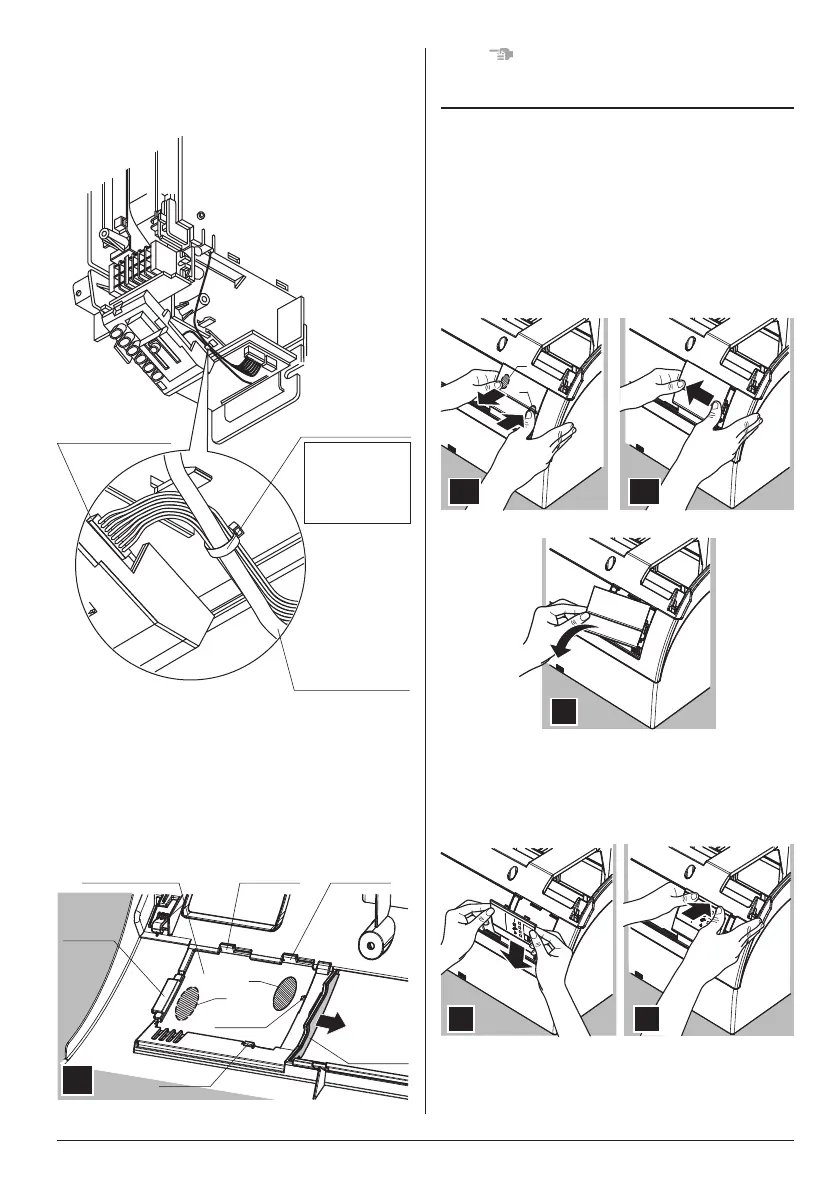

After making these connection, clamp the
wire harness - long (3) and the wire
harness - short (4) using the included
clamp (7).
Wire harness -
long (3)
Wire harness -
short (4)
Clamp (7)
Cut off any
excess
material after
tightening.
(4)
Attaching the control panel
1. Remove the sealing material and prepare
new replacement sealing material
(accessory).
1
Hook 3a Hook 3b
Sealing
material
Cover
(pre-installed)
B
A
Hook 1
Hook 4
Hook 2
Inside view of the front grille
NOTE
• The hook positions are the same for both
pre-installed cover and control panel.
2. Slide the cover to side while pushing the
cover on A position from the back side
and on B position from the front side.
Hooks 1 and 2 will be removed from their
positions.
3. Take the cover away by pulling the left
side of the cover away from the front
grille, removing hooks 3a, 3b and 4 from
their position.
B
A
2a 2b
3
4. Position the hook 4 on the control panel to
the correct location on the front grille.
5. Attach the hooks 3a and 3b by pushing
them against the front grille.
4 5
01_EN_4P457494-6L.indd 23 13/03/2019 11:07:53
