7 | Unit installation
Installer reference guide
82
ERLA11~16D + EBBH/X11+16D
Daikin Altherma 3 R W
4P643603-1B – 2022.05
4×

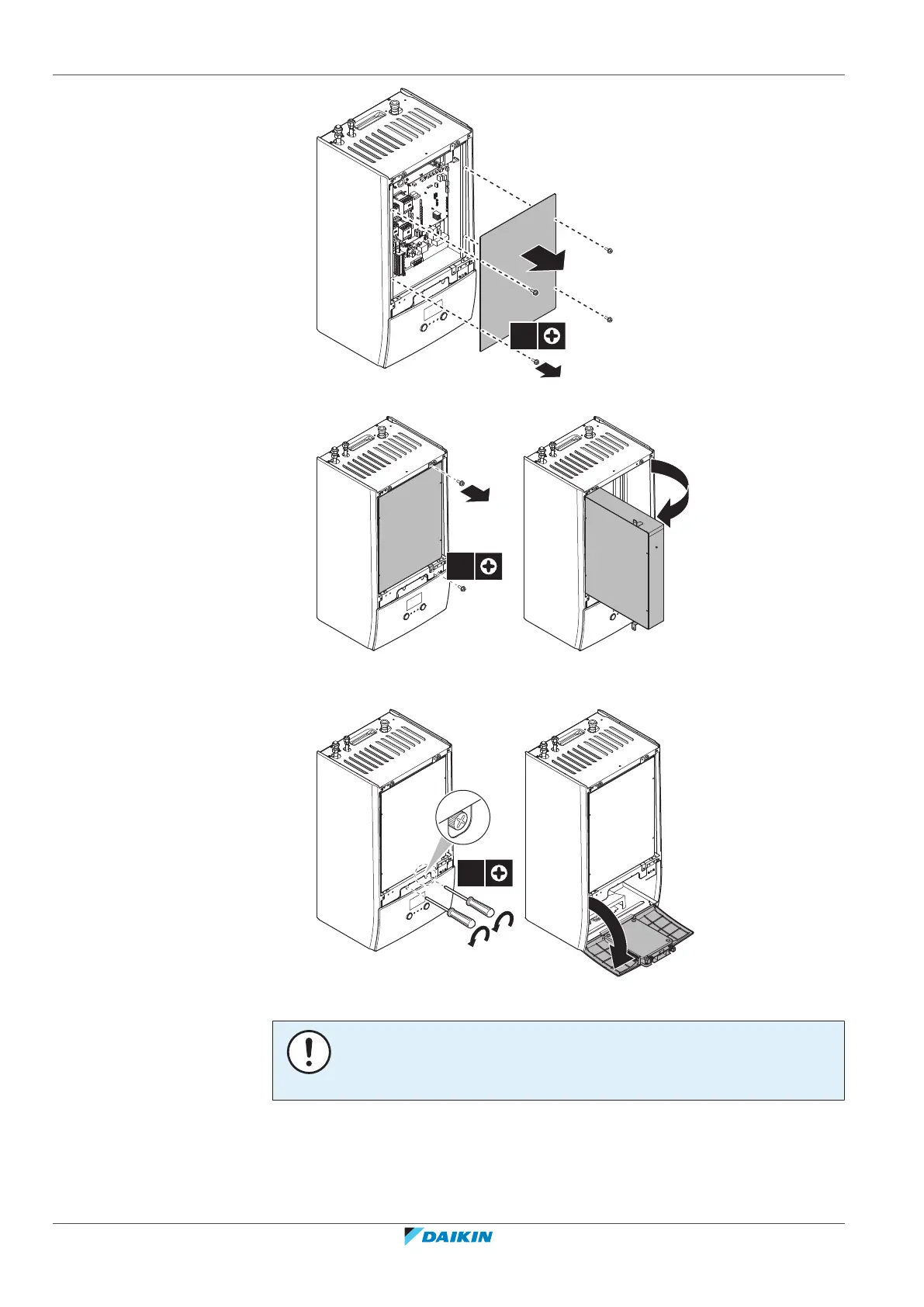

3 If you have to do work behind the switch box, open the switch box.
2×
1
2
4 If you have to do work behind the user interface panel or upload new
software into the user interface, open the user interface panel.
1
2
3
2×
5 Optional: Remove the user interface panel.
NOTICE
If you remove the user interface panel, also disconnect the cables from the back of
the user interface panel to prevent damage.
