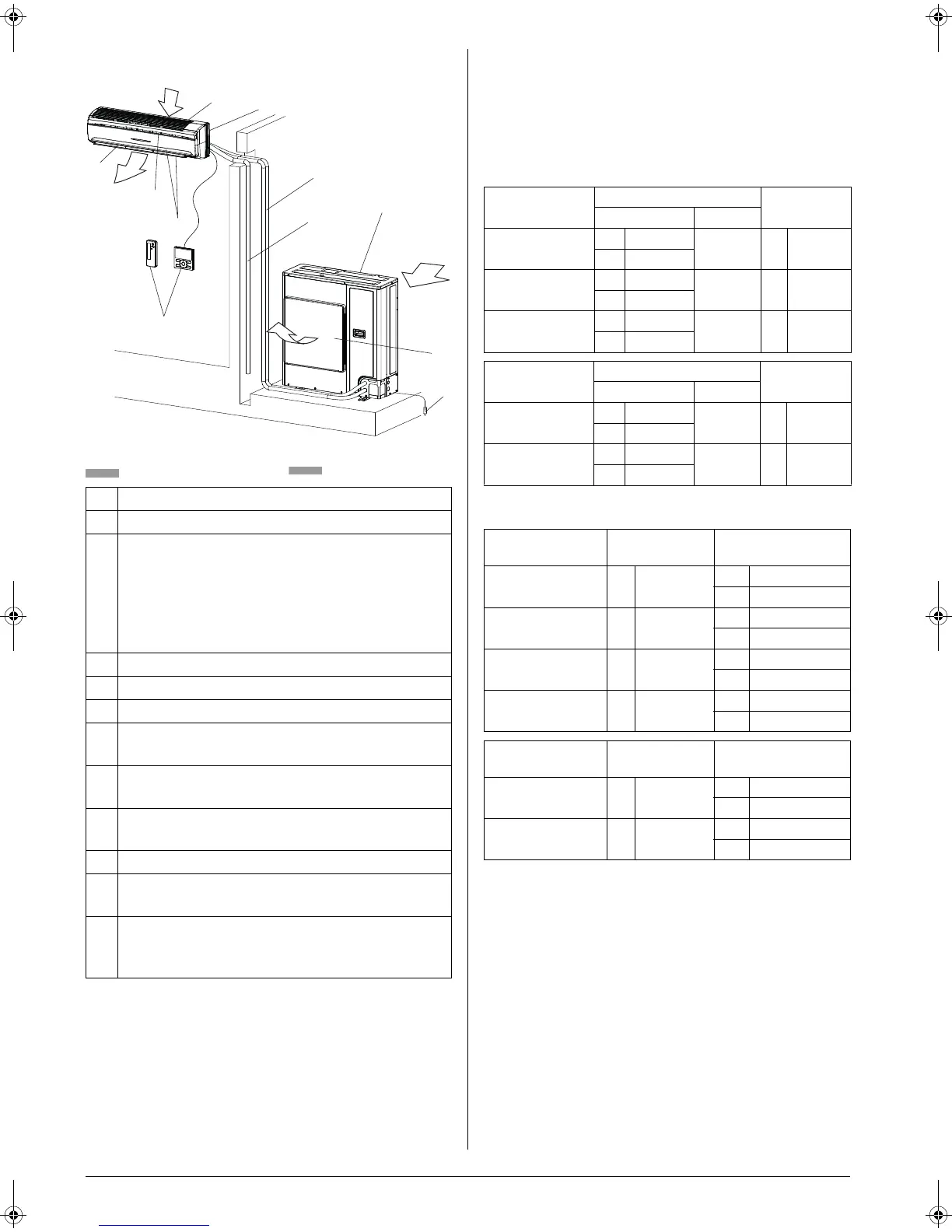

NAMES AND FUNCTIONS OF PARTS
Refer to figure above
a Indoor unit
b Outdoor unit
c
Remote controller
For using of BRC1E or wireless remote con-
troller, please refer to operation manual pro-
vided with the remote controller.
The remote controller may not be needed
depending on the system configuration.
d Suction air
e Discharged air
f Air outlet
g
Airflow flap (Vertical airflow direction adjust-
ment flap)
h
Airflow flap (Horizontal airflow direction
adjustment flap)
i
Refrigerant piping, electric wire connection,
earth wire
j Drain pipe
k
Air inlet
The built-in air filter removes dust and dirt.
l
Earth wire
Wire to ground from the outdoor unit to pre-
vent electrical shocks and fire.
e
e
a
b
c
d
d
f
f
g
h
i
j
k
l
3. OPERATION RANGE
If the temperature or the humidity is beyond the fol-
lowing conditions, safety devices may work and the
air conditioner may not operate, or sometimes,
water may drop from the indoor unit.
COOLING [°C]
HEATING [°C]
D
B: Dry bulb temperature
WB: Wet bulb temperature
The setting temperature range of the remote con-
troller is 16°C to 32°C depends on heating/cooling
mode.
OUTDOOR
UNIT
INDOOR
Outdoor
temperature
Temperature Humidity
RZQG
DB 18~37
≤80%
DB
–15~50
WB 12~28
RZQSG71~140
DB 20~37
≤80%
DB
–15~43
WB 14~28
RZQ200
DB 20~37
≤80%
DB
–5~46
WB 14~28
OUTDOOR
UNIT
INDOOR
Outdoor
temperature
Temperature Humidity
RZAG71~140
DB 18~37
≤80%
DB
–20~52
WB 12~28
RZASG71~140
DB 20~37
≤80%
DB
–15~46
WB 14~28
OUTDOOR UNIT
Indoor
temperature
Outdoor
temperature
RZQG DB 10~27
DB
–19.5~21
WB
–20~15.5
RZQSG71 DB 10~27
DB
–14~21
WB
–15~15.5
RZQSG100~140
DB 10~27
DB
–14~21
WB
–15~15.5
RZQ200 DB 10~27
DB
–14~21
WB
–15~15
OUTDOOR UNIT
Indoor
temperature
Outdoor
temperature
RZAG71~140
DB 10~27
DB
–19.5~21
WB
–20~15.5
RZASG71~140
DB 10~27
DB
–14~21
WB
–15~15.5
