Daikin FCQ71KVLT - Procedure to Remove Fan Motor; Removing the Fan Rotor; Removing the Fan Motor

Procedure to Remove Fan Motor Si281312E
10 Removal Procedure

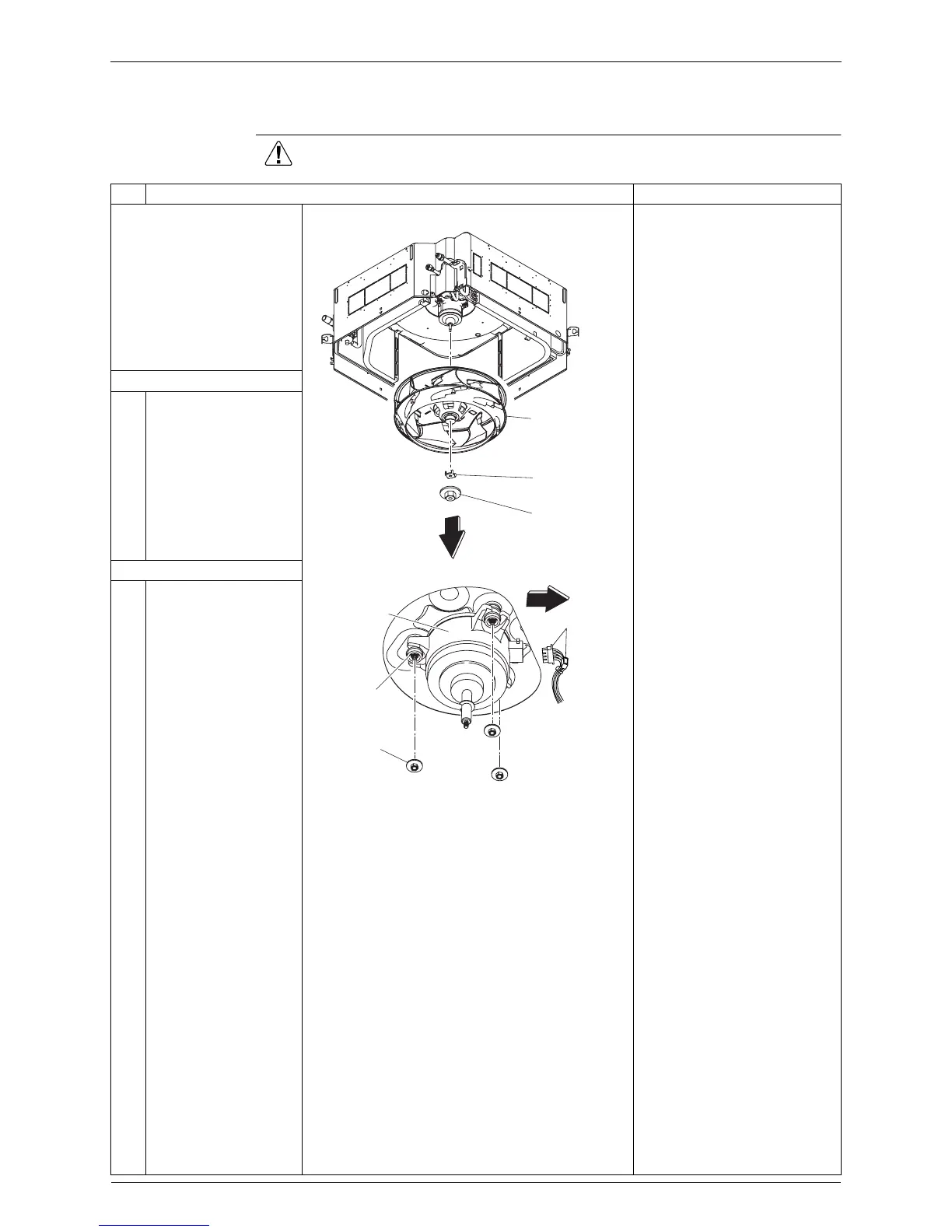

8. Procedure to Remove Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points

According to the
procedure for the removal
of switch box, remove the
switch box.

According to the
procedure for the removal
of bell mouth, remove the
bell mouth.
1. Removing the fan rotor
1
Remove the washer-
faced nut and the fan
rotor lock bracket.
2
Pull out the fan rotor
downward.
2. Removing the fan motor
1
Disconnect the
connector from the fan
motor.
2
Remove the washer-
faced nut, and then
take out the fan motor.
3
Remove the vibro-
isolating rubber from
the fan motor.
Fan rotor
Fan lock bracket
Washer-faced nut
Fan motor
V
ibro-isolating
r
ubber
Washer-faced nut
Connectors
(2 pcs.)
