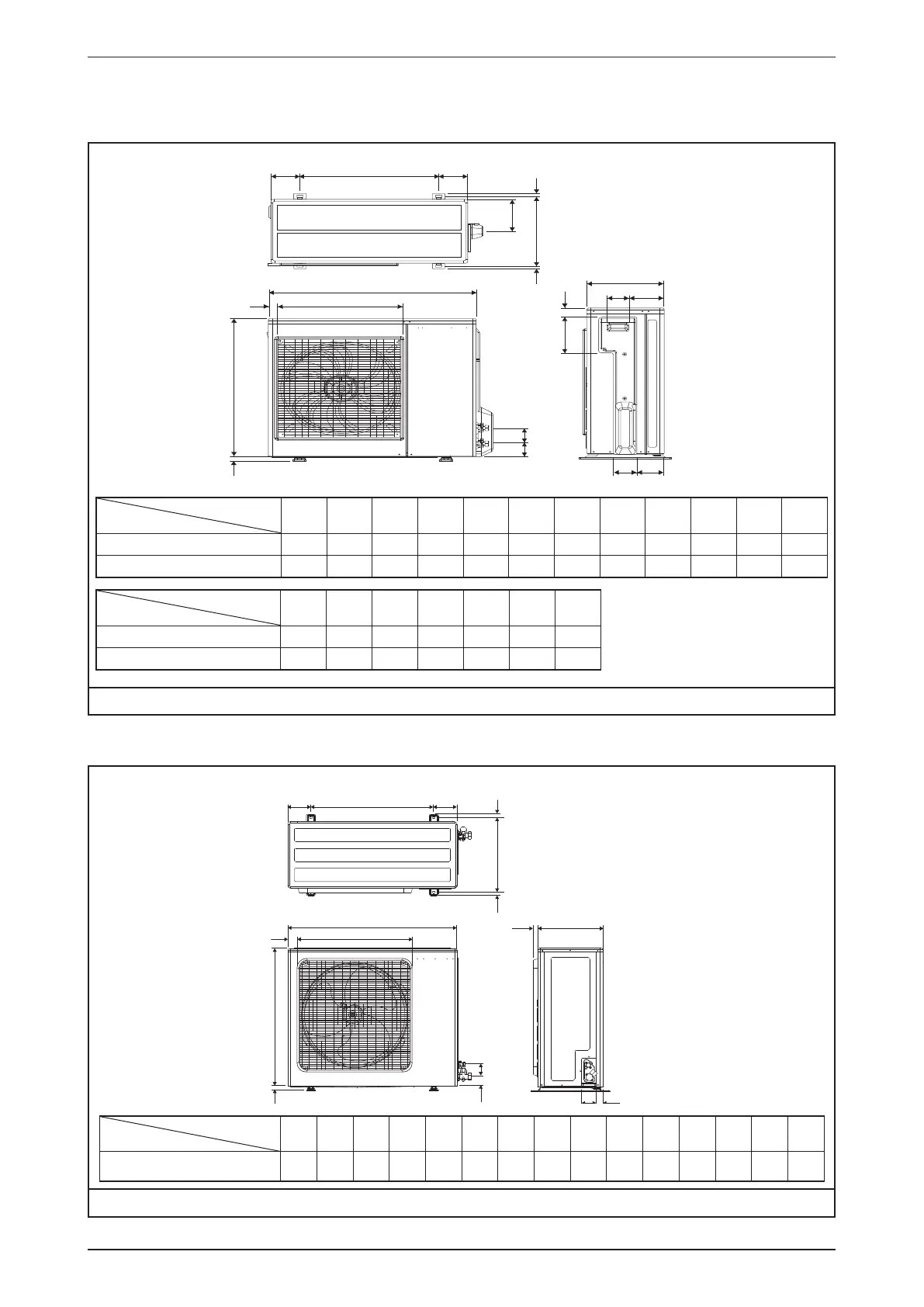

Outline & Dimension
Outdoor Unit
Model: RN/RR18/24/30CXV1S2
A
N
B
L
L
M
Q
O
D
N
C
HG
FE
JI
S
R
P
K
Dimension
Model
A B C D E F G H I J K L
18 855 628 328 520 179 46 93 149 101 113 603 126
24/30 855 730 328 520 179 46 93 149 101 113 603 126
Dimension
Model
M N O P Q R S
18 164 15 34 23 362 73 75
24/30 164 15 34 23 362 73 75
Note: Dimension in mm
Model: RR36DXV1S2 / RR42/45DXY1S2
J
I
J
M NN
C
O
D
K
A
B
L
E
F
G H
Dimension
Model
A B C D E F G H I J K L M N O
36/42/45 1030 826 400 695 57 72 90 40 746 142 60 26 448 22 28
Note: Dimension in mm
