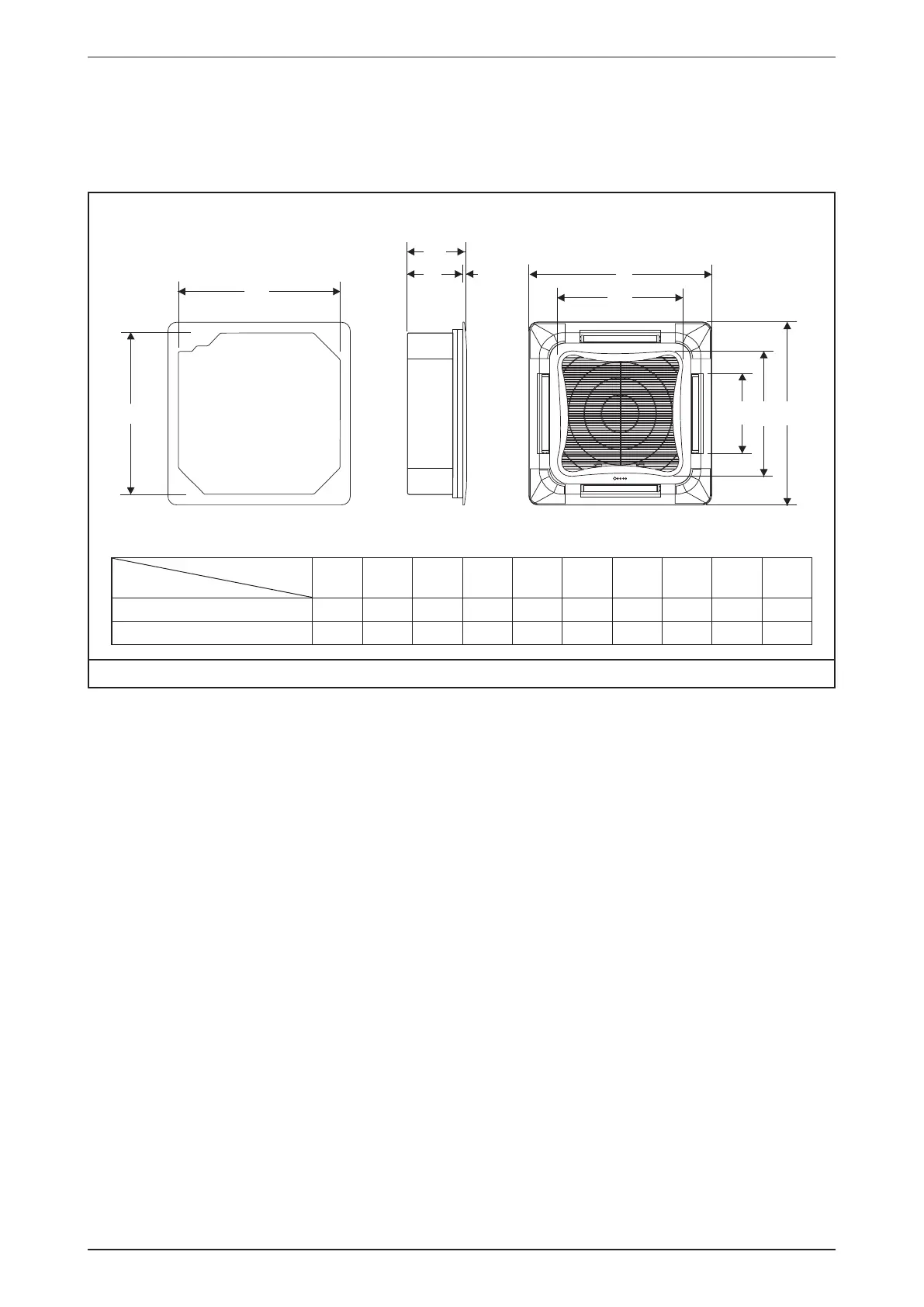

Outline & Dimension
Outline & Dimension
Indoor Unit
Model: FCRN18/24/30/36/42/45FXV1S
J
B
D
A
C
E
H
F
I G
Dimension
Model
A B C D E F G H I J
18/24 840 840 304 284 20 950 950 650 650 416
30/36/42/45 840 840 346 326 20 950 950 650 650 416
Note: Dimension in mm
