16 | Unit installation
Installer and user reference guide
52
FDA125A5VEB
Split system air conditioners
4P495031-1B – 2022.10
1
2
4
3

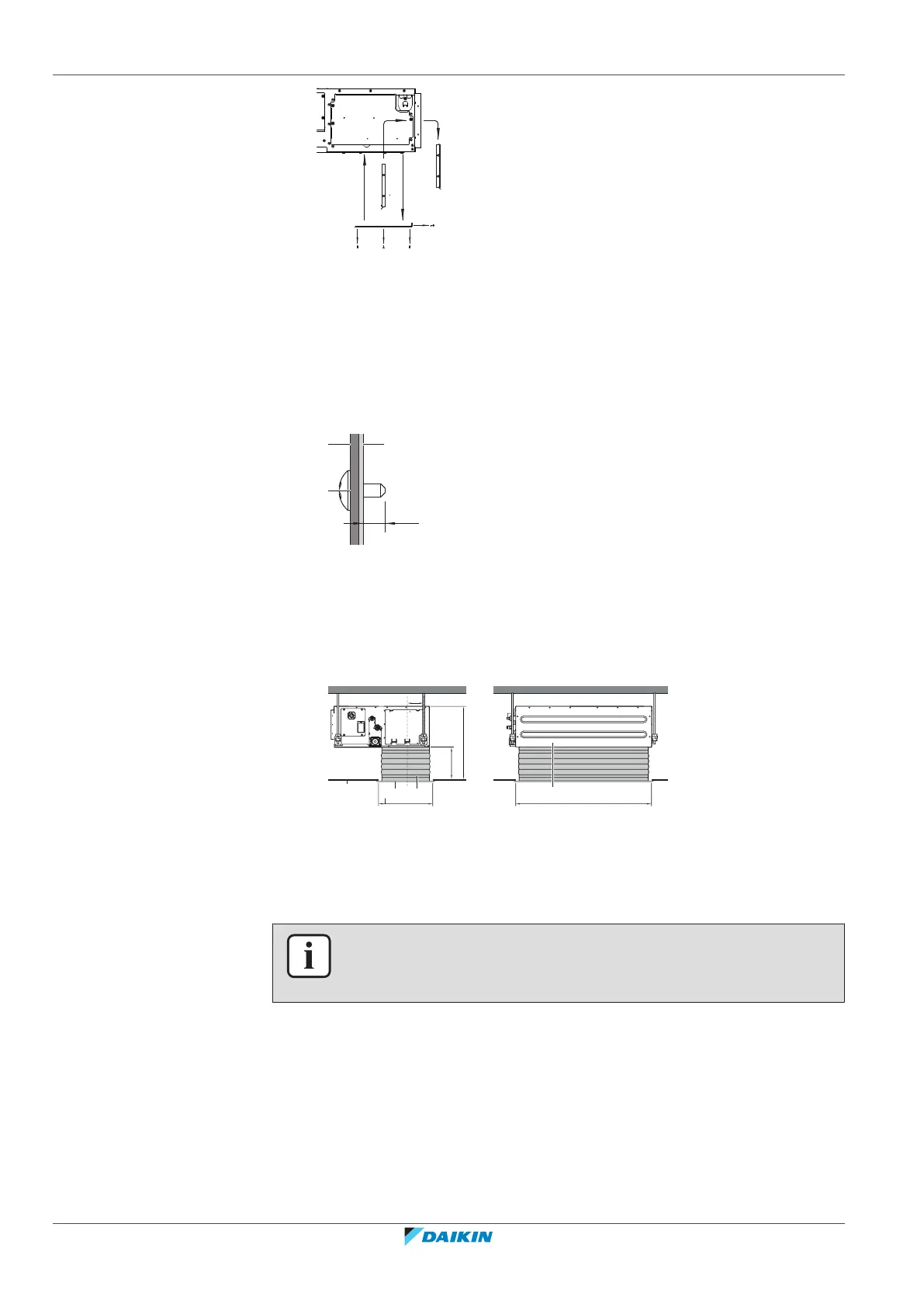

1 Remove the air filter(s) from the outside of the unit.
2 Remove the interchangeable plate.
3 Install the air filter(s) on the inside of the unit.
4 Reinstall the interchangeable plate.
▪ When installing an air inlet duct, select fixing screws that stick out 5mm on the
inside of the flange to protect the air filter from damage during maintenance of
the filter.
a
b
c
5 mm
a Air inlet duct
b Inside of the flange
c Fixing screw
▪ Ceiling strength. Check whether the ceiling is strong enough to support the
weight of the unit. If there is a risk, reinforce the ceiling before installing the unit.
▪ Installation options:
b
c
a
A
180
460
1460
160
(160~300)
425
e
d
A Mounting the air inlet with a canvas connection
a Ceiling surface
b Ceiling opening
c Air inlet panel (field supply)
d Indoor unit (back side)
e Canvas connection for air inlet panel (field supply)
INFORMATION
The unit can be used with bottom suction by replacing the interchangeable plate by
the air filter holding plate.
