16 | Unit installation
Installer and user reference guide
51
FDA125A5VEB
Split system air conditioners
4P495031-1B – 2022.10
a Service space
b Drain pipe
c Power supply wiring port
d Transmission wiring port
e Maintenance drain outlet
f Gas pipe
g Liquid pipe

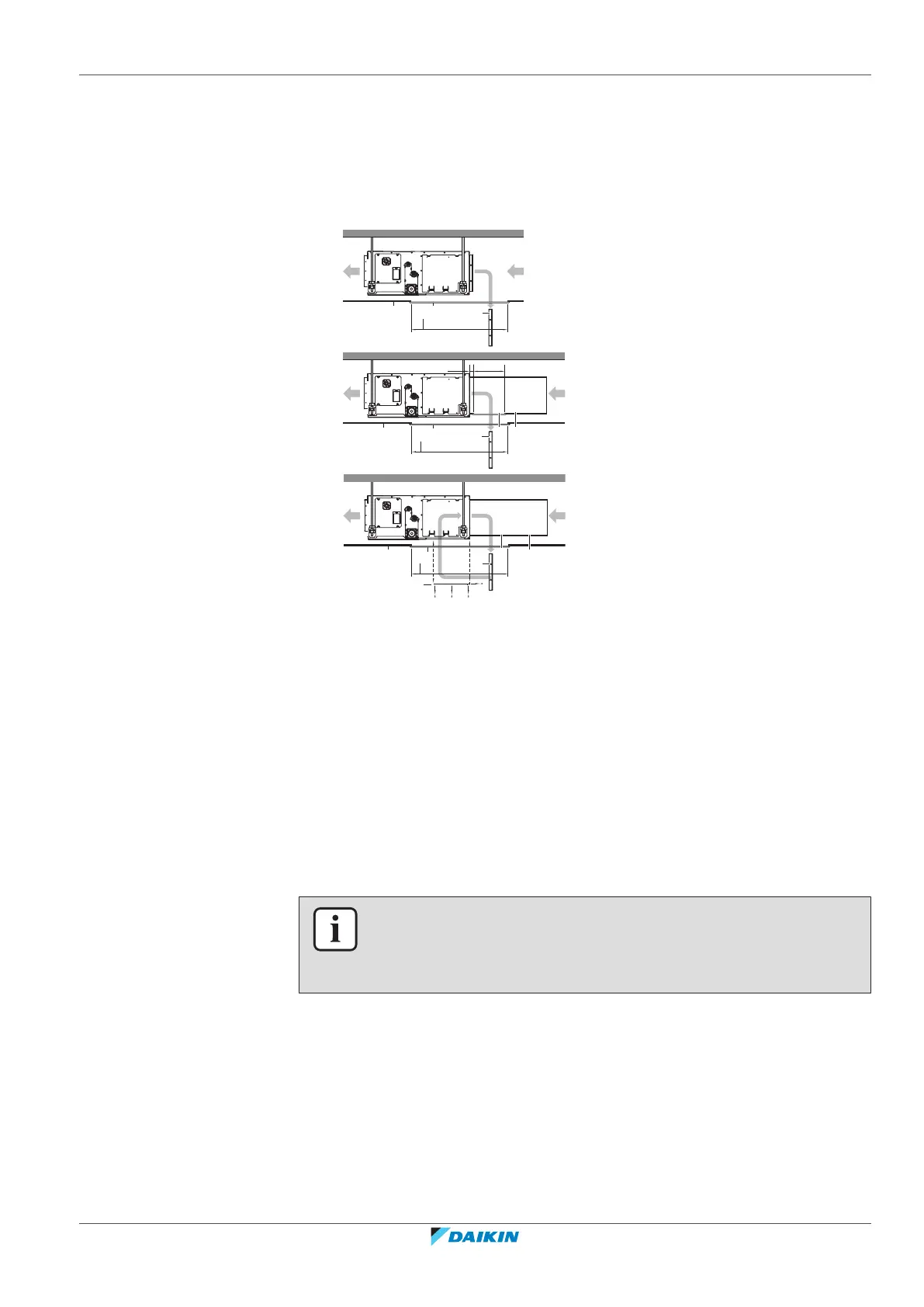

▪ Installation options:
680
c
b
a
A
d
a
B
b
c
680
200<45
d
e
f
g
a
C
b
c
680
d
e
f
A Standard rear suction
B Installation with rear duct and duct service opening
C Installation with rear duct, no duct service opening
a Ceiling surface
b Ceiling opening
c Service access panel (field supply)
d Air filter
e Air inlet filter
f Duct service opening
g Interchangeable plate
16.2 Mounting the indoor unit
16.2.1 Guidelines when installing the indoor unit
INFORMATION
Optional equipment. When installing optional equipment, also read the installation
manual of the optional equipment. Depending on the field conditions, it might be
easier to install the optional equipment first.
▪ In case of installation with duct, but no duct service opening. Modify the
position of the air filters.
