Daikin FT35DVM - Page 176

Si01-501 FT09/13DV2S, FT25/35DVM, FT25/35DSG
Removal Procedure 167

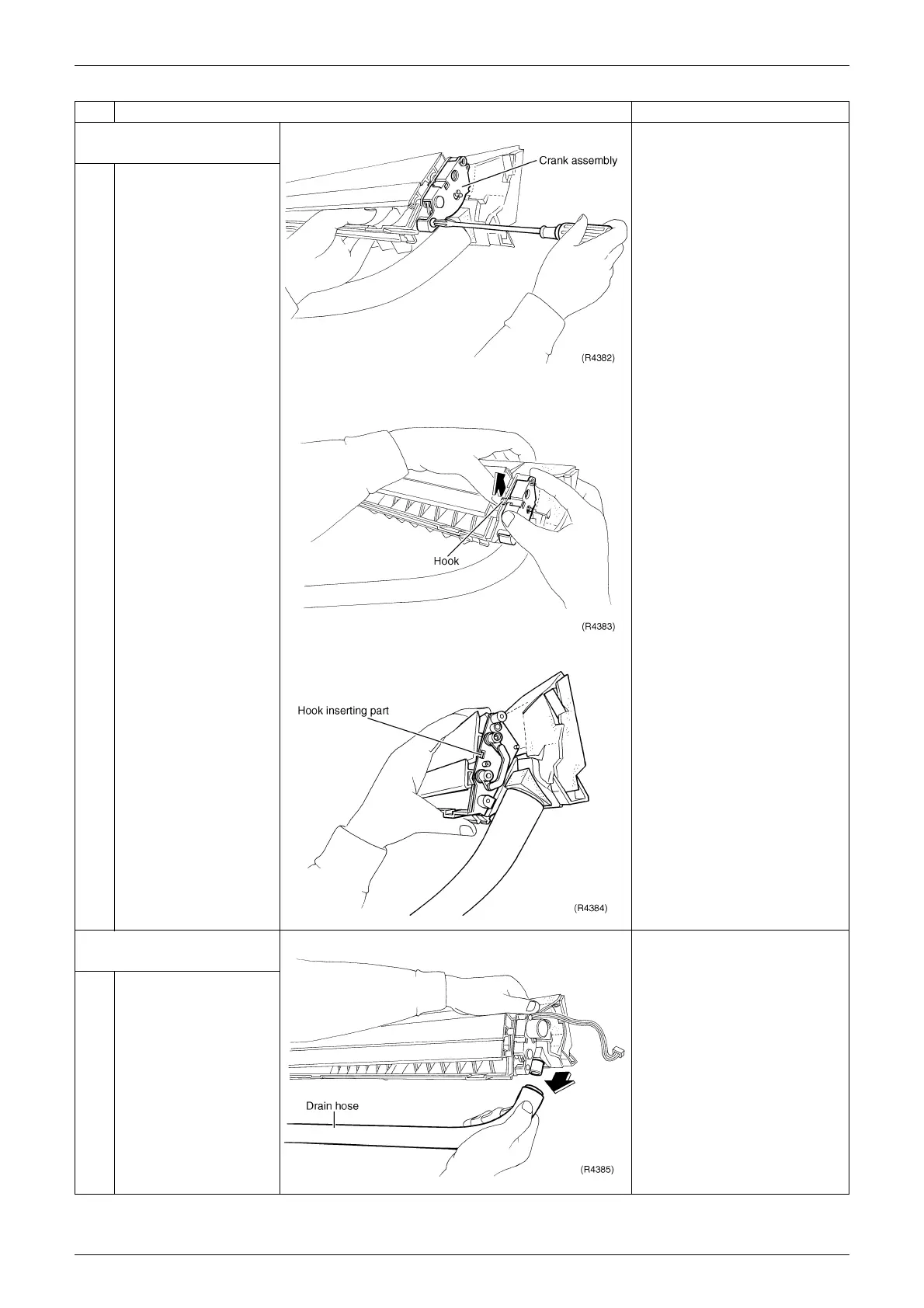

3. Removing the crank
assembly
1
Remove the screw of
the crank assembly.
2
Remove the crank
assembly by
unfastening the hook.
3
The figure shows the
position of the hook
when the crank
assembly has been
removed.
4. How to connect the drain
hose in right piping
1
Pull out the drain hose
from its right side
connection.
Step Procedure Points
