Daikin FT35DVM - 3. R25;35 DV1

FT15DV2S, FT50/60DSG Si01-501

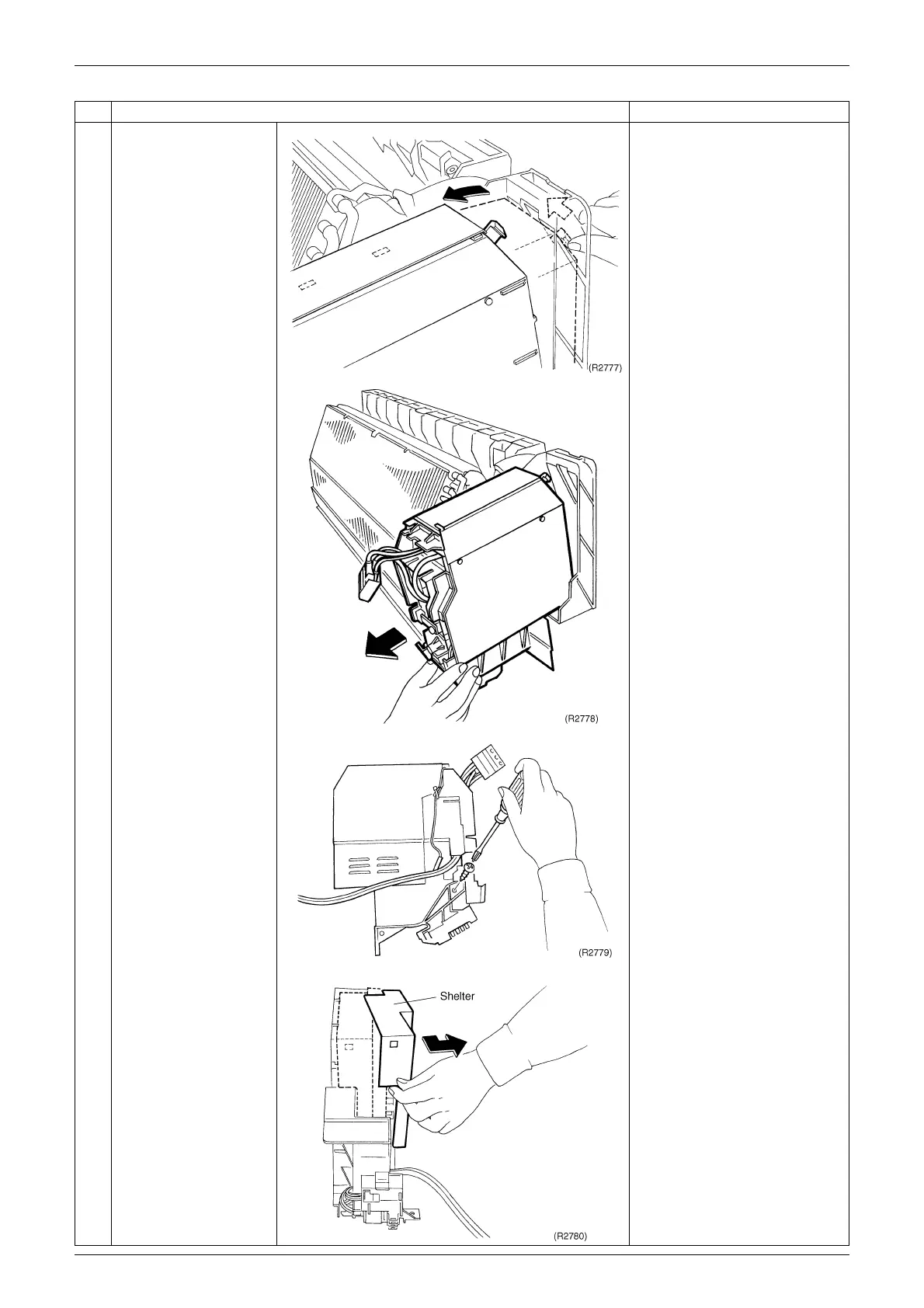

186 Removal Procedure
5
Dislocate the electrical
box to the left and undo
the back claw.

The electrical box has a claw
on its back.
6
Pull the electrical box
out towards you.

Hook the back claw of the
electrical box when
reassembling.
7
Loosen the screw on
the electrical box.

Screw: M4×16
8
Push the shelter up and
undo the claw.
Step
Procedure Points
