Removal Procedure 207

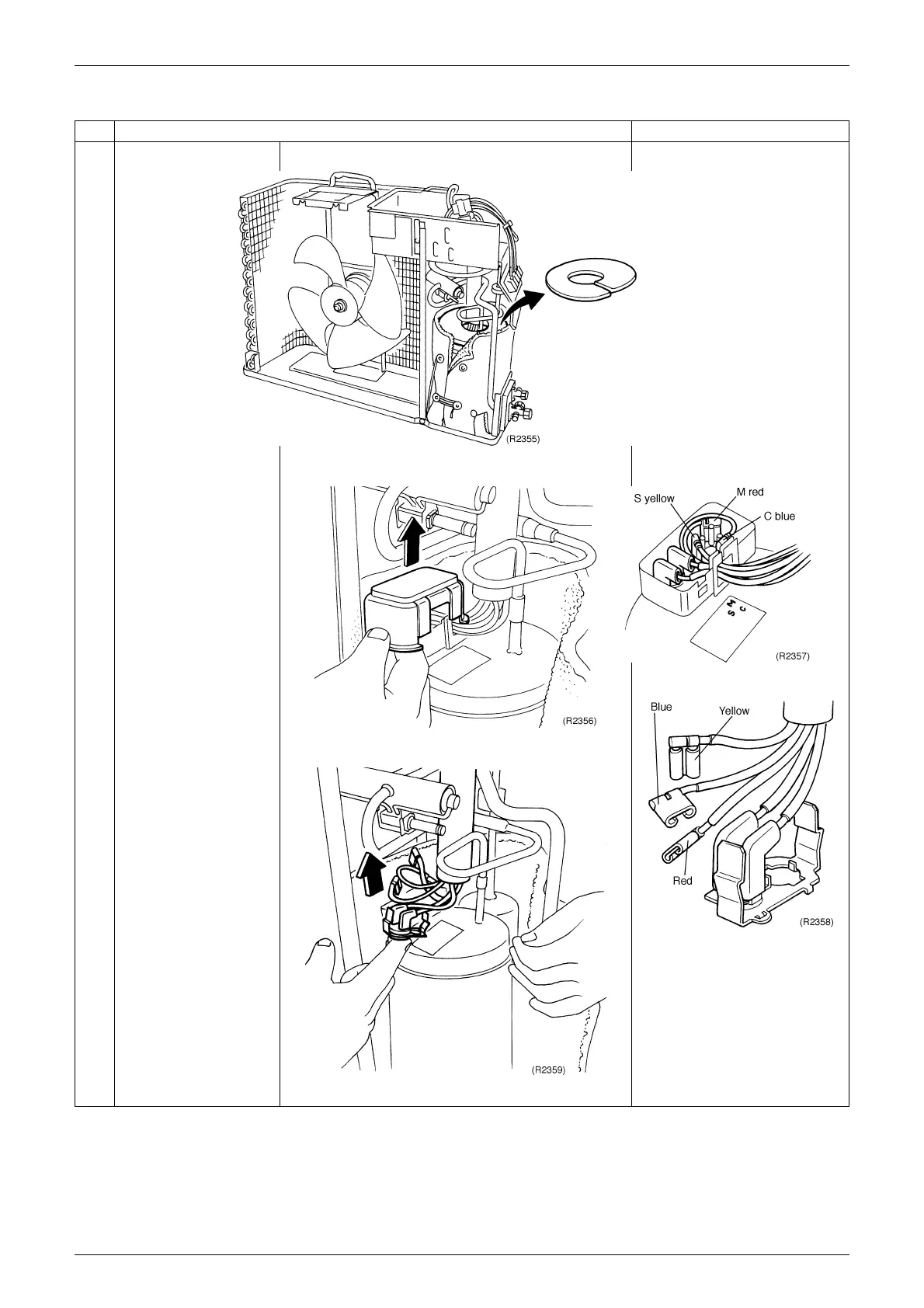

Step Procedure Points
3
Remove top insulation
material from
compressor.

Terminal code is printed. Do
not scorch the indication
with the flame of welder.
Also record terminal code on
a memo paper in case the
indication becomes illegible.
4
Remove terminal cover.

Connect lead wires to
proper fasten terminals.
S ······Yellow
M······Red
C ······Blue
5
Remove compressor
protective device and
three terminals together
with mounting plate.
