Si01-501 R60DSG
Removal Procedure 229
4

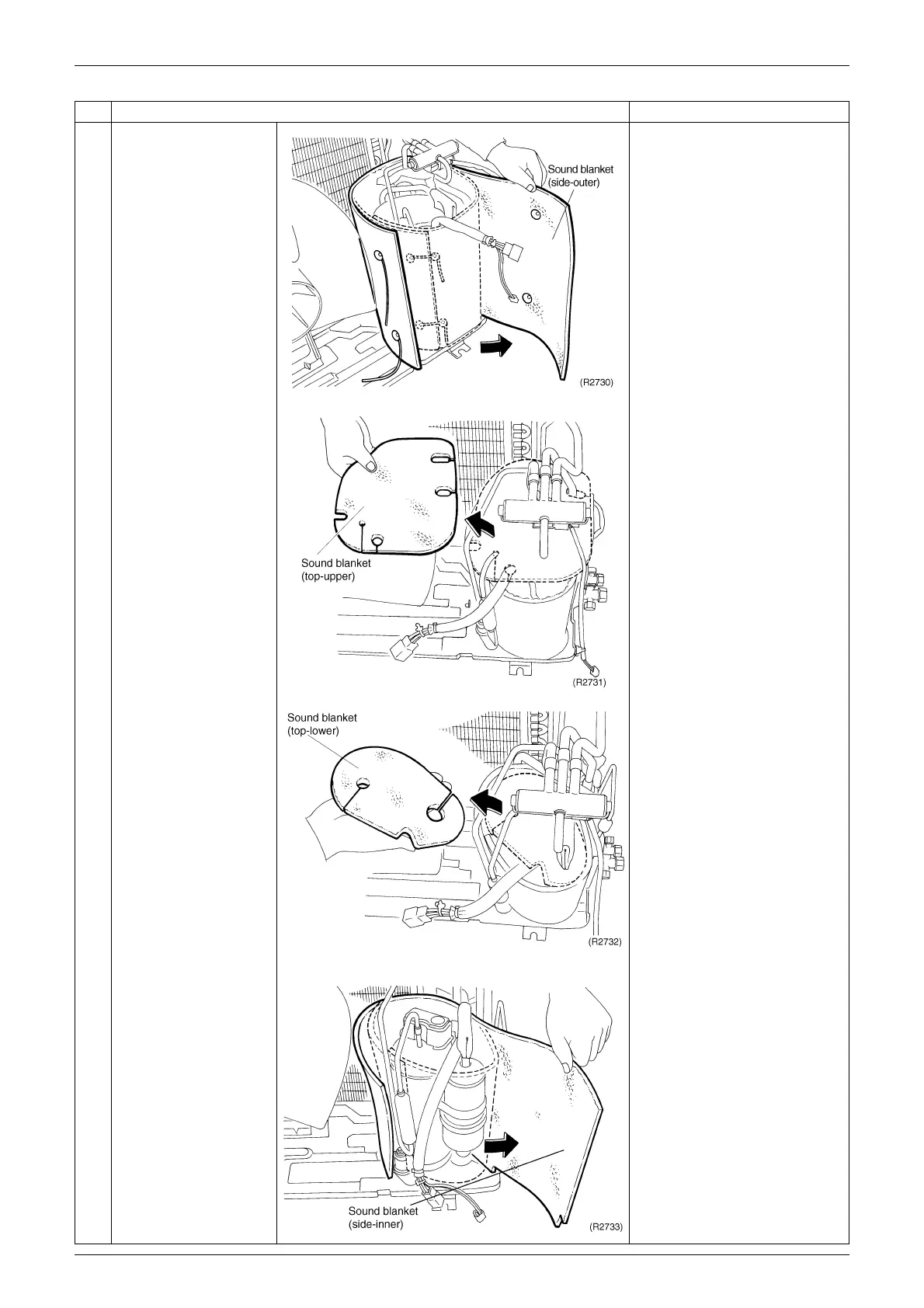

Remove the sound
blanket (side-outer).
Since the piping ports on the
sound blanket (side-outer)
are torn easily, remove the
blanket carefully.
5
Remove the sound
blanket (top-upper).
6
Remove the sound
blanket (top-lower).
7
Remove the sound
blanket (side-inner).
Since the piping ports on the
sound blanket (side-inner)
are torn easily, remove the
blanket carefully.
Step
Procedure Points
To Next Page
