Field Settings SiBE121123_A
227 Trial Operation and Field Settings
Floor Standing
Type
FVXG Series

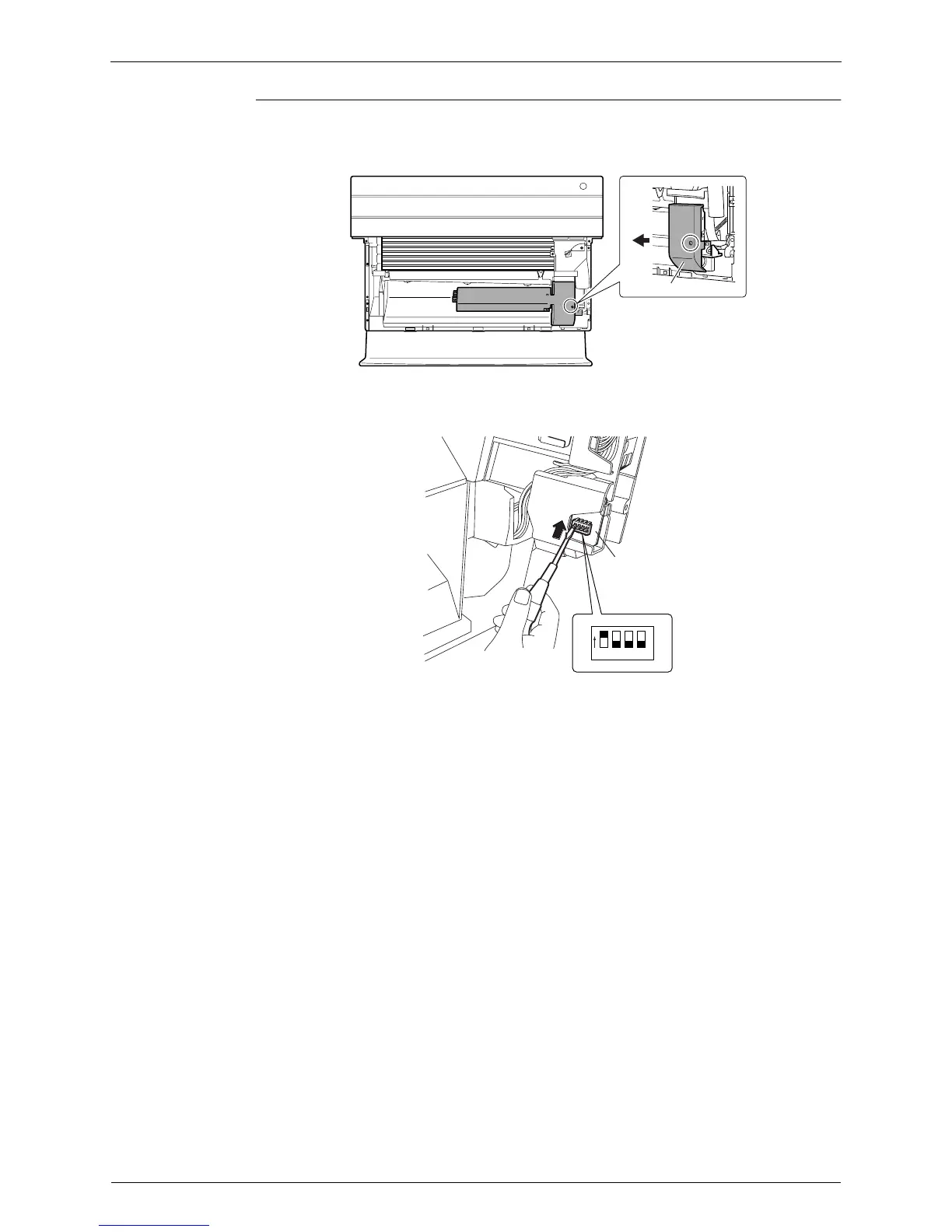

(1) Remove the front panel, air filters and front grille.
(2) Remove the screw, and remove the service cover.
(3)Turn on the DIP switch [S2W-1] on the service PCB.
∗ Keep the other switches as factory setting.
Service cover
(R14629)
1 2 3 4
OFF
ON
Service PCB
(R14630)
To Next Page
