Function of RA Indoor Unit SiBE121123_A
55 Function and Control
1.4 Airflow Direction Control
Power-Airflow
Dual Flaps
The large flap sends a large volume of air downward to the floor and provides an optimum
control in cooling, dry, and heating operation.
<Cooling / Dry>
During cooling or dry operation, the flap retracts into the indoor unit. Then, cool air can be blown
far and distributed all over the room.
<Heating>
During heating operation, the large flap directs airflow downward to spread the warm air to the
entire room.
Wide-Angle
Louvers
The louvers, made of elastic synthetic resin, provide a wide range of airflow that guarantees a
comfortable air distribution.

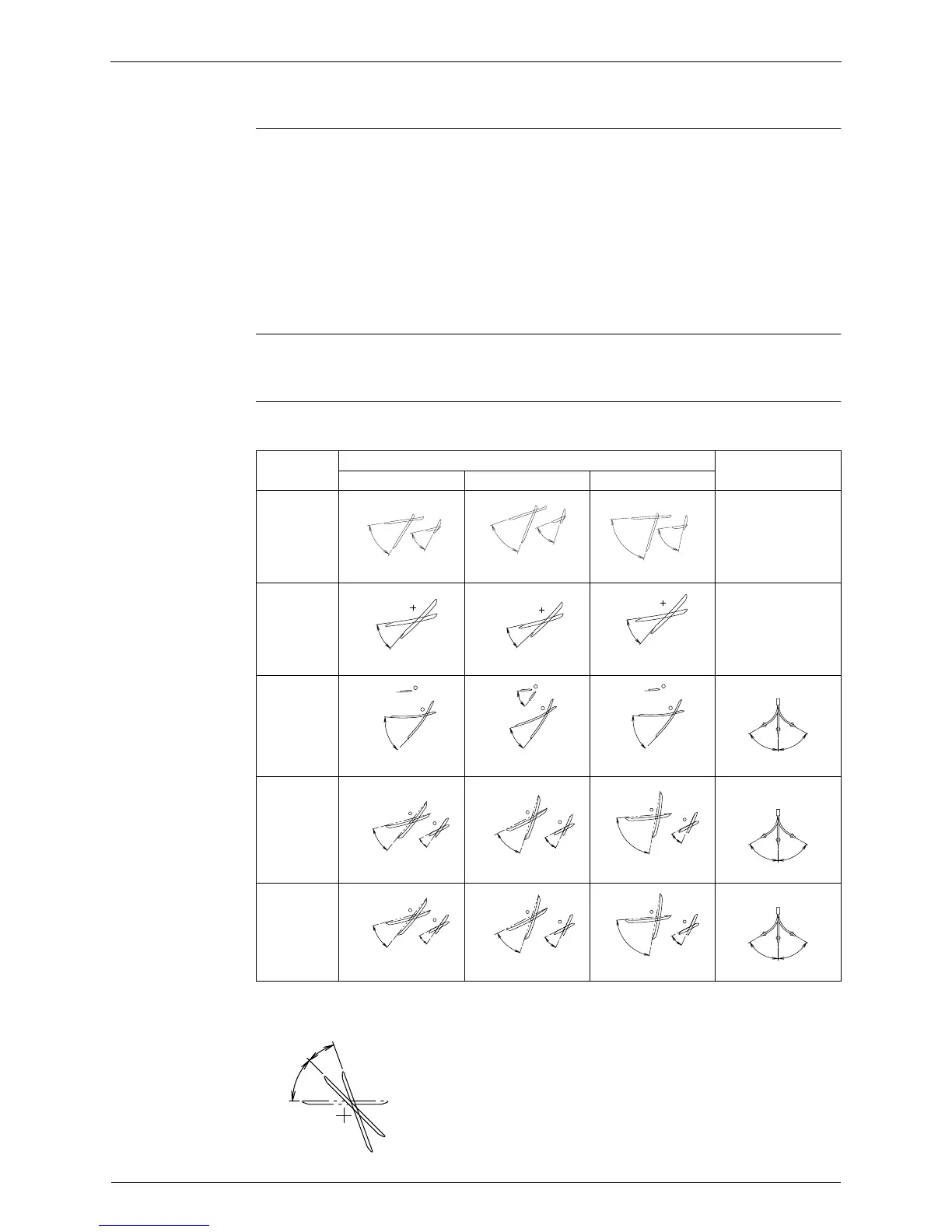

Auto-Swing The following table explains the auto-swing process for cooling, dry, heating, and fan:
Wall Mounted Type
Floor Standing Type: FVXG Series
The swinging range of the flap is the same in any operation mode.
Series
Vertical Swing (up and down)
Horizontal Swing
(right and left)
Cooling / Dry Heating Fan
FTXG
(R11662)
(R11664)
(R11663)
CTXS
FTXS20/25K
FTX, ATX
(R11256)
(R11257)
(R11256)
FTXS35/42/
50K
(R18422)
(R18423)
(R18422)
(R11404)
FTXS-J
(R12182) (R11402) (R14208) (R11404)
ATXS
(R12182)
(R11402)
(R11403)
(R11404)
10˚
15˚
60˚
65˚
20˚
70˚
25˚
75˚
10˚
80˚
75˚
45˚
15˚
45˚
45˚
10˚
10˚
60˚
10˚
60˚
30˚
65˚
10˚
10˚
60˚
45˚
45˚
15˚
50˚
30˚
55˚
30˚
70˚
30˚
65˚
80˚
30˚
65˚
45˚
45˚
15˚
50˚
30˚
55˚
30˚
70˚
30˚
65˚
80˚
30˚
65˚
45˚
45˚
25˚
45˚
(R14634)
