Indoor Unit SiBE121123_A

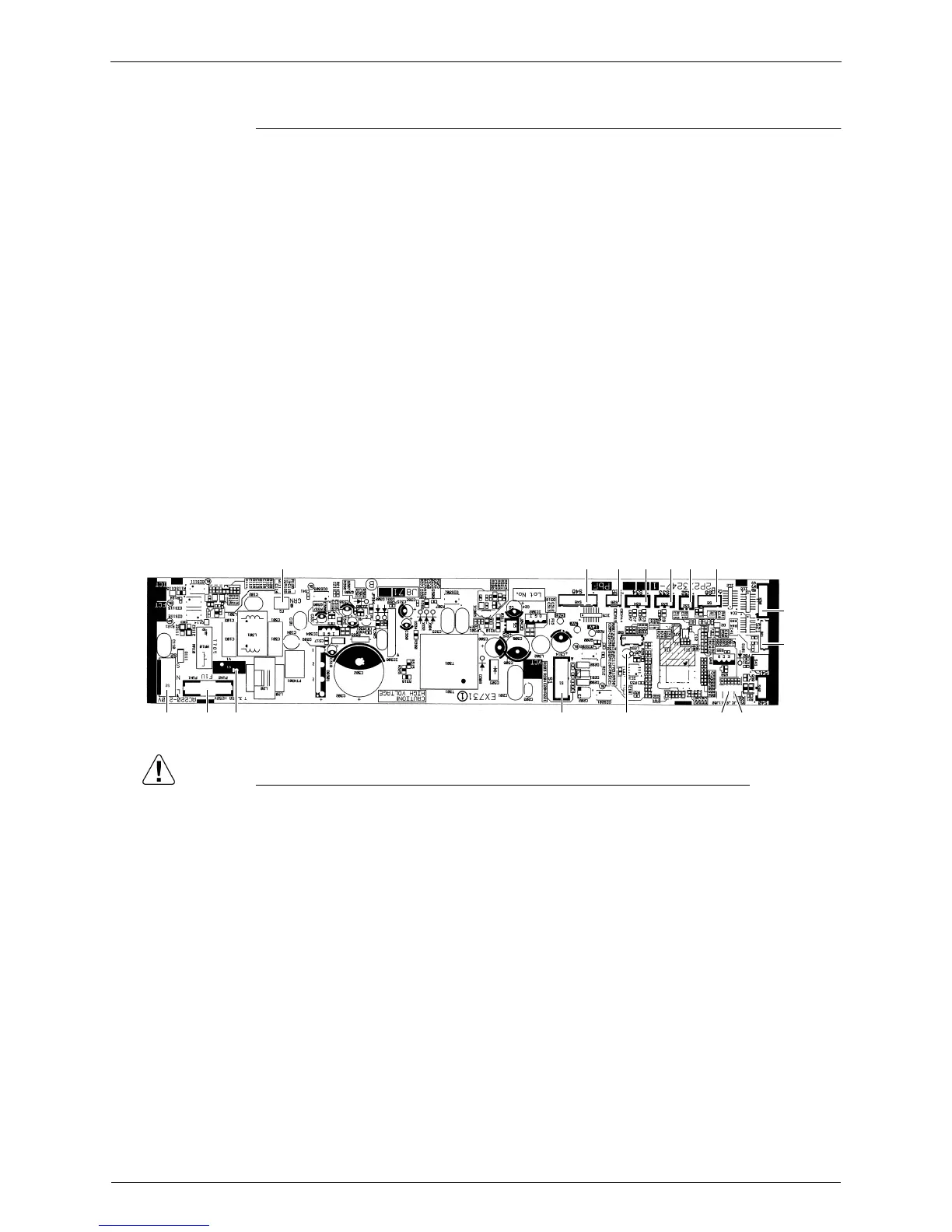

37 Printed Circuit Board Connector Wiring Diagram
1.5 FVXG25/35/50K2V1B
Main PCB
Caution Replace the PCB if you accidentally cut the jumpers other than JB and JC.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
1) S1 Connector for fan motor
2) S2 Connector for terminal board
3) S6 Connector for swing motor
4) S21 Connector for centralized control (HA)
5) S26 Connector for service PCB
6) S30 Connector for indoor electronic expansion valve coil (motor operated
valve coil)
7) S32 Connector for indoor heat exchanger thermistor
8) S33 Connector for room temperature thermistor
9) S34 Connector for radiant panel thermistors
10) S46 Connector for display PCB
11) FG Connector for earth
12) V1 Varistor
13) JB Fan speed setting when compressor stops for thermostat OFF
JC Power failure recovery function
∗ Refer to page 230 for detail.
14) F1U Fuse (3.15A, 250V)
15) LED A LED for service monitor (green)
S6
S30
S21
S32
S33
S34
S26S46FG
LED AS1V1F1US2 JB JC
2P273247-1
To Next Page
