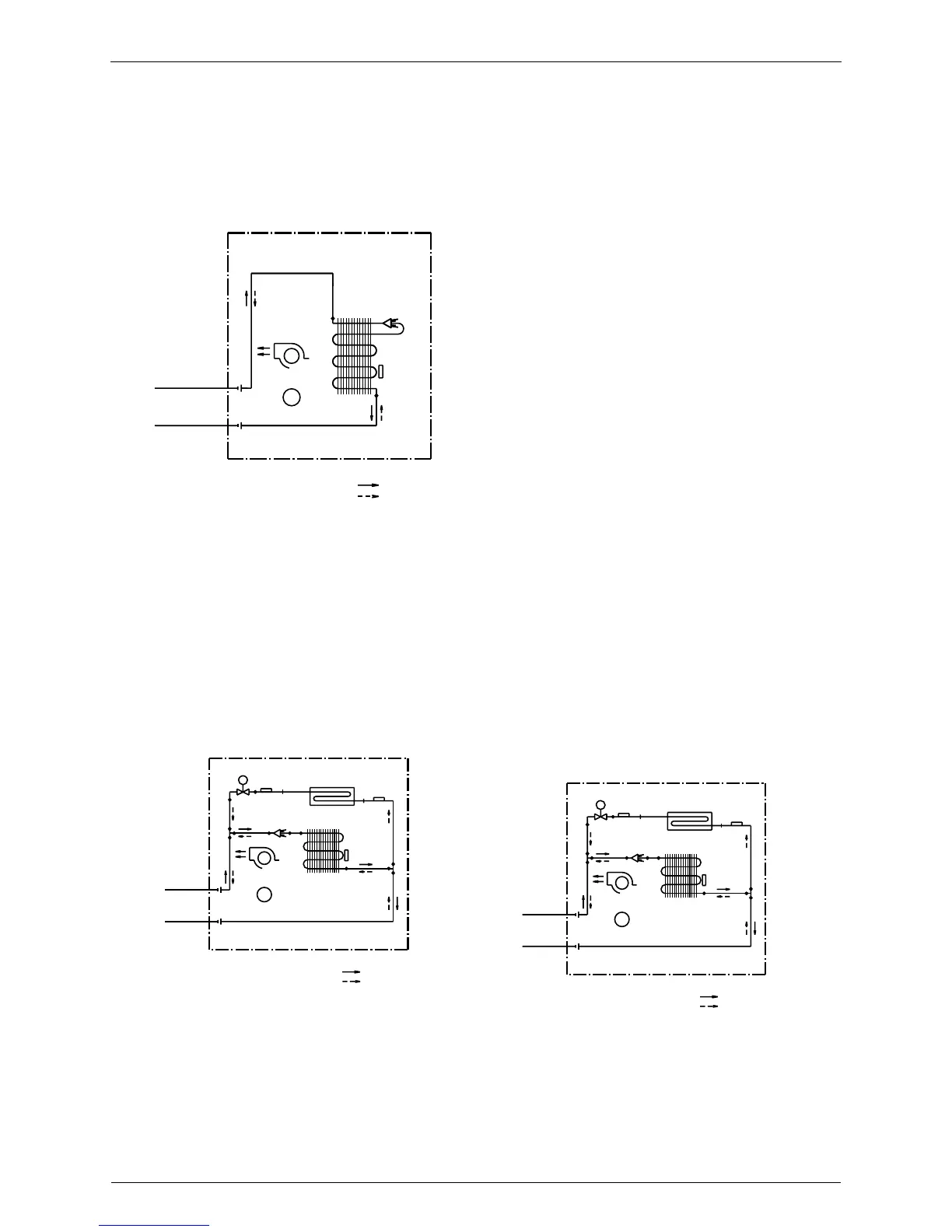

Piping Diagrams SiBE121123_A
243 Appendix
1.1.2 Floor Standing Type
FTXS50K2V1B, FTXS50J2V1B
ATXS50G2V1B
INDOOR UNIT
6.4CuT
HEAT EXCHANGER
CROSS FLOW FAN
M
FAN MOTOR
9.5CuT
REFRIGERANT FLOW
COOLING
HEATING
FIELD PIPING
6.4CuT
FIELD PIPING
12.7CuT
THERMISTOR
ON HEAT EXCH.
4D058898G
FVXG25/35K2V1B FVXG50K2V1B
INDOOR UNIT
MV
RADIANT PANEL
THERMISTOR
6.4CuT
THERMISTOR
HEAT EXCHANGER
6.4CuT
6.4CuT
CROSS FLOW FAN
FIELD PIPING
M
6.4CuT
FAN MOTOR
FIELD PIPING
9.5CuT
9.5CuT
REFRIGERANT FLOW
COOLING
HEATING
THERMISTOR
ON HEAT EXCH.
4D071597
INDOOR UNIT
MV
RADIANT PANEL
THERMISTOR
6.4CuT
THERMISTOR
HEAT EXCHANGER
6.4CuT
6.4CuT
CROSS FLOW FAN
FIELD PIPING
M
6.4CuT
FAN MOTOR
FIELD PIPING
9.5CuT
12.7CuT
REFRIGERANT FLOW
COOLING
HEATING
THERMISTOR
ON HEAT EXCH.
4D071598
