SiBE121123_A Indoor Unit

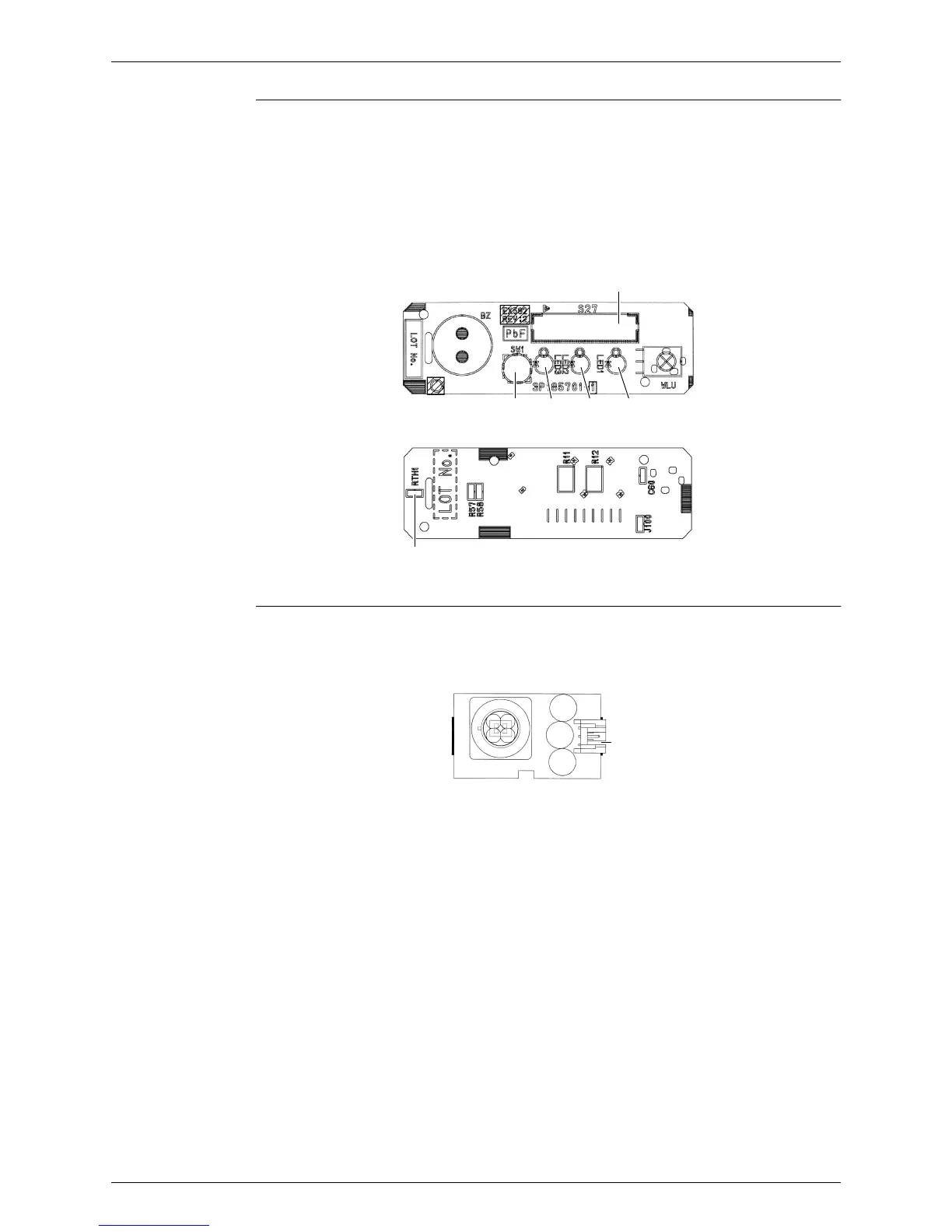

Printed Circuit Board Connector Wiring Diagram 32
Display PCB
INTELLIGENT
EYE Sensor PCB
1) S27 Connector for control PCB
2) SW1 (S1W) Forced cooling operation [ON/OFF] button
3) LED1 (H1P) LED for operation (green)
4) LED2 (H2P) LED for timer (yellow)
5) LED3 (H3P) LED for INTELLIGENT EYE (green)
6) RTH1 (R1T) Room temperature thermistor
S27
SW1
(Solder side)
LED2LED3 LED1
RTH1
3P185701-3
1) S36 Connector for control PCB
S36
3P296737-1
To Next Page
