SiBE121123_A Indoor Unit

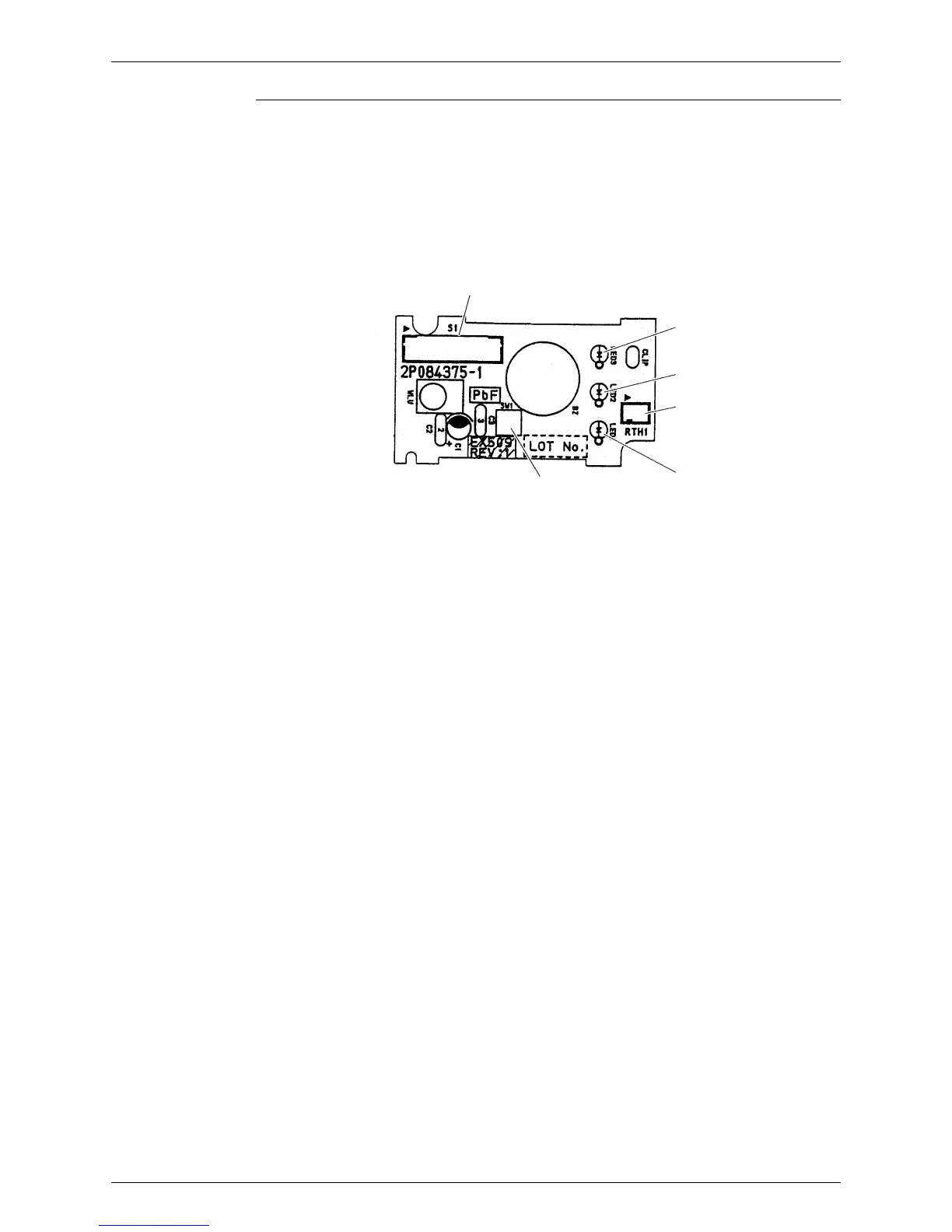

Printed Circuit Board Connector Wiring Diagram 44
Display PCB
1) S1 Connector for control PCB
2) SW1 (S1W) Forced operation [ON/OFF] button
3) LED1 (H1P) LED for HOME LEAVE operation (red)
4) LED2 (H2P) LED for timer (yellow)
5) LED3 (H3P) LED for operation (green)
6) RTH1 (R1T) Room temperature thermistor
S1
LED3
LED2
RTH1
LED1
SW1
2P084375-1
