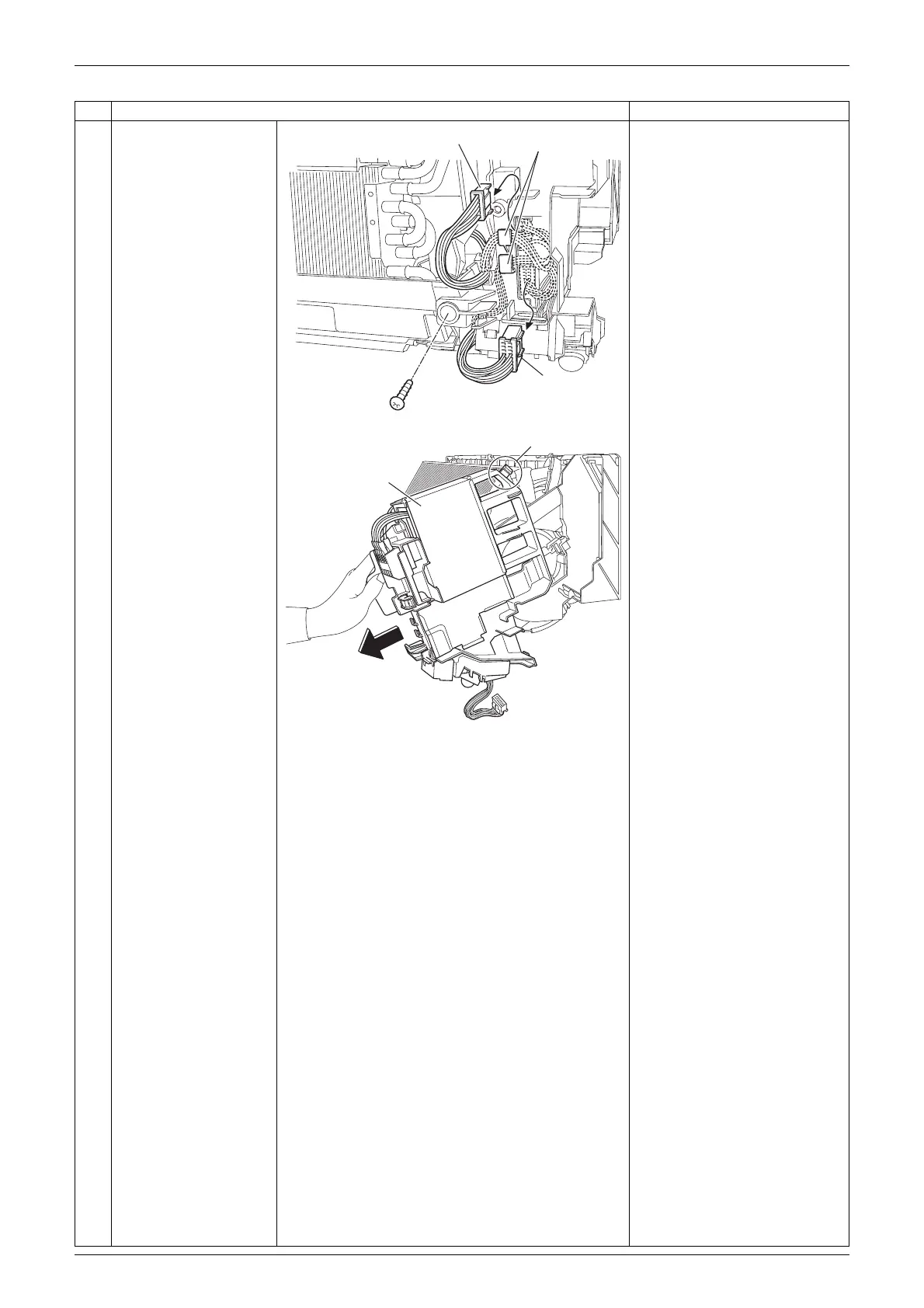

Electrical Box Si041255EH
8 Removal Procedure
7
8
Disconnect the
connectors [S1] [S41]
and release the
harnesses from the
hooks.
Remove the screw of
the electrical box.
[S1]: fan motor
[S41]: swing motor(s)
9
10
Unfasten the hook at
the back of the
electrical box.
Pull out and remove the
electrical box.
When reassembling, make
sure the hook at the back of
the electrical box is securely
fastened.
Step Procedure Points
[S41]
[S1]
Hook
(R18794)
(R17677)
Hook
Electrical box
