Daikin FTKC50NVM User Manual

Si041255EH PCBs
Removal Procedure 9
7. PCBs
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

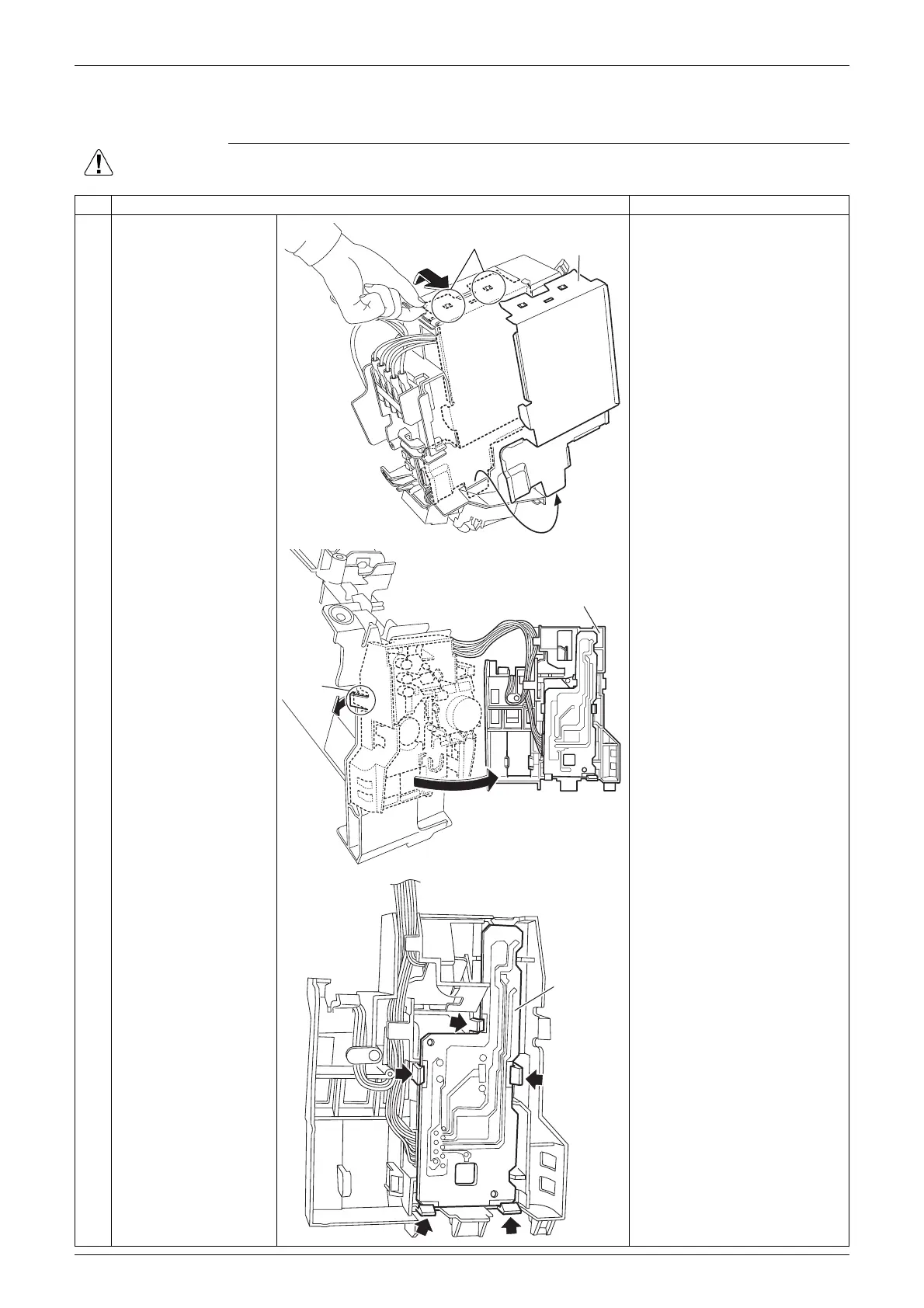

1 Unfasten the 2 hooks
on the top and remove
the shield plate.
2 Unfasten the hook and
remove the signal
receiver unit.
3 Unfasten the 5 hooks
and remove the display
PCB.
Shield plate
(R17925)
Hook
Hook
Signal receiver unit
(R22554)
Display
PCB
(R11351)
