Si041255EH Front Panel
Removal Procedure 3
2. Front Panel
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

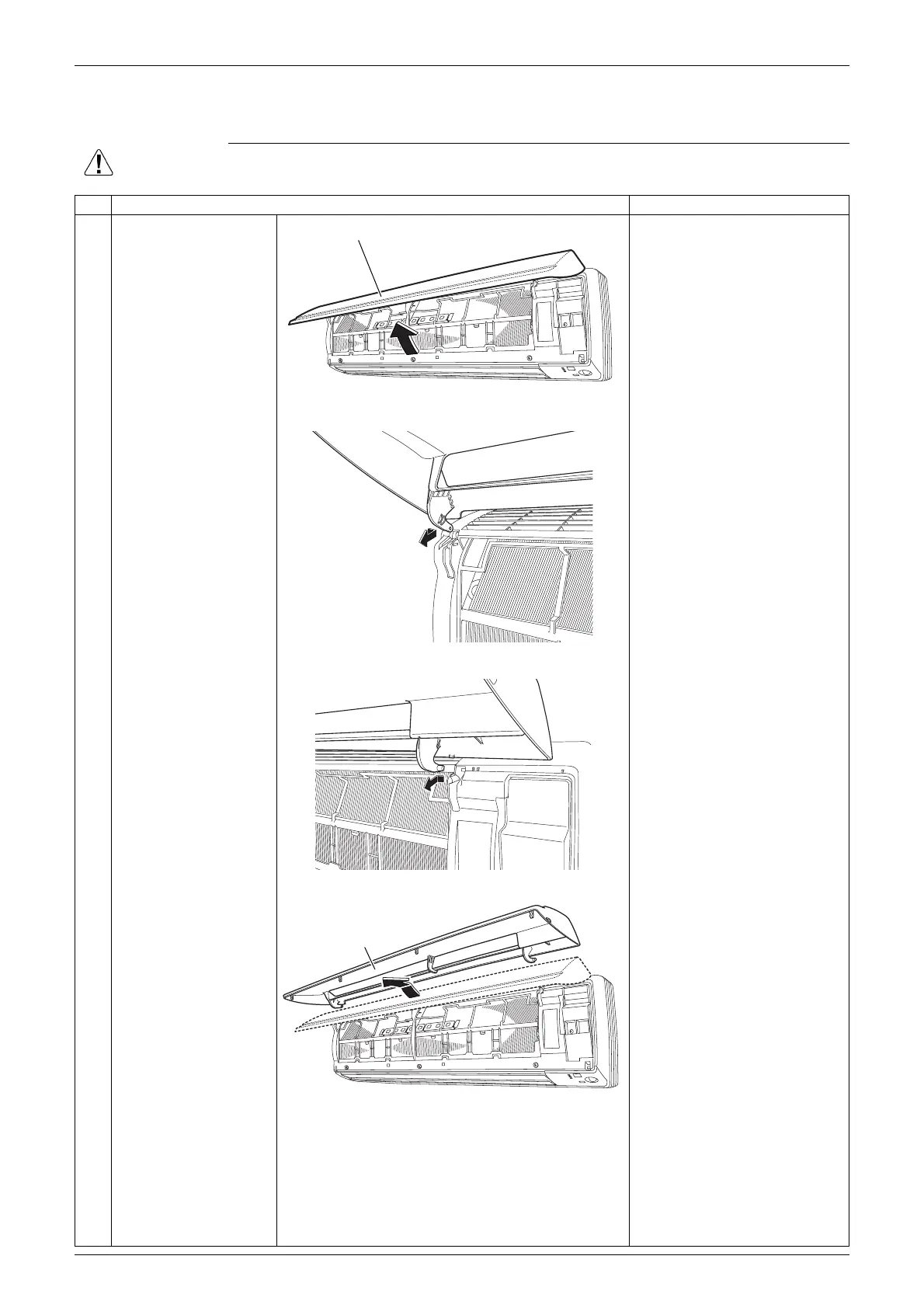

Step Procedure Points
1 Open the front panel
over the position where
it stops.
2 Slide the left rotary
shaft to the right and
release it.
When reassembling the front
panel, fit the right and left
rotary shafts one by one into
the grooves and fully push
them into position.
3 Slide the right rotary
shaft to the left and
release it.
4 Remove the front panel.
(R23310)
Front panel
(R11328)
(R11329)
(R18792)
Front panel
