Daikin FTKC50NVM User Manual

Si041255EH Electrical Box
Removal Procedure 7

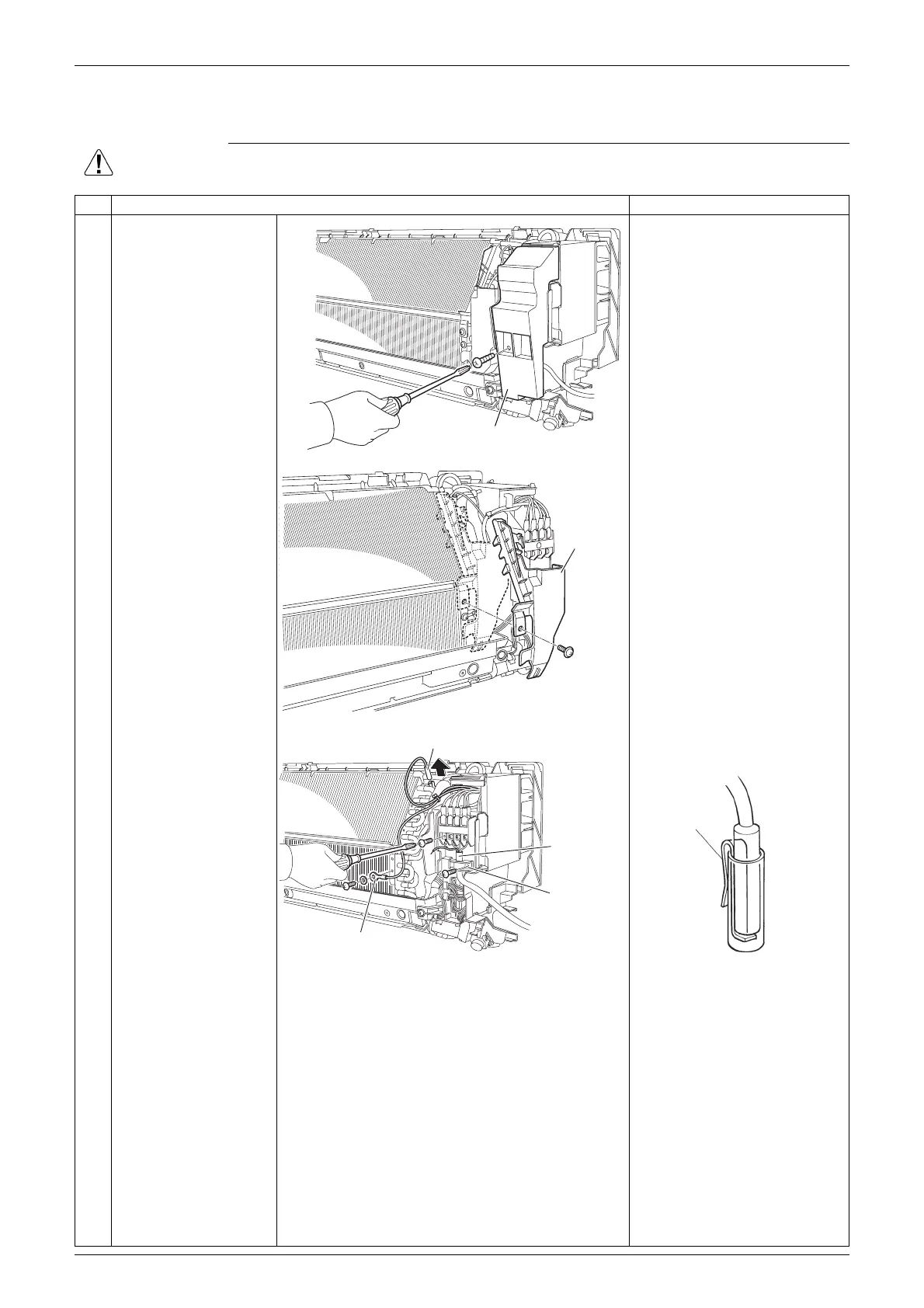

6. Electrical Box
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the screw and
remove the service
cover.
2 Remove the screw and
remove the drip proof
plate.
3
4
5
6
Pull out the indoor heat
exchanger thermistor.
Remove the screw of
the earth / ground wire.
Remove the screw of
the wire fixture.
Remove the 4 screws
of the connecting wires.

Be careful not to lose the clip
of the thermistor.
Service cover
(R17675)
Drip proof
plate
(R11343)
Indoor heat exchanger thermistor
Earth / ground wire
Connecting
wire
Wire
fixture
(R18966)
Clip
(R11268)
