Si041255EH Horizontal Blades
Removal Procedure 5

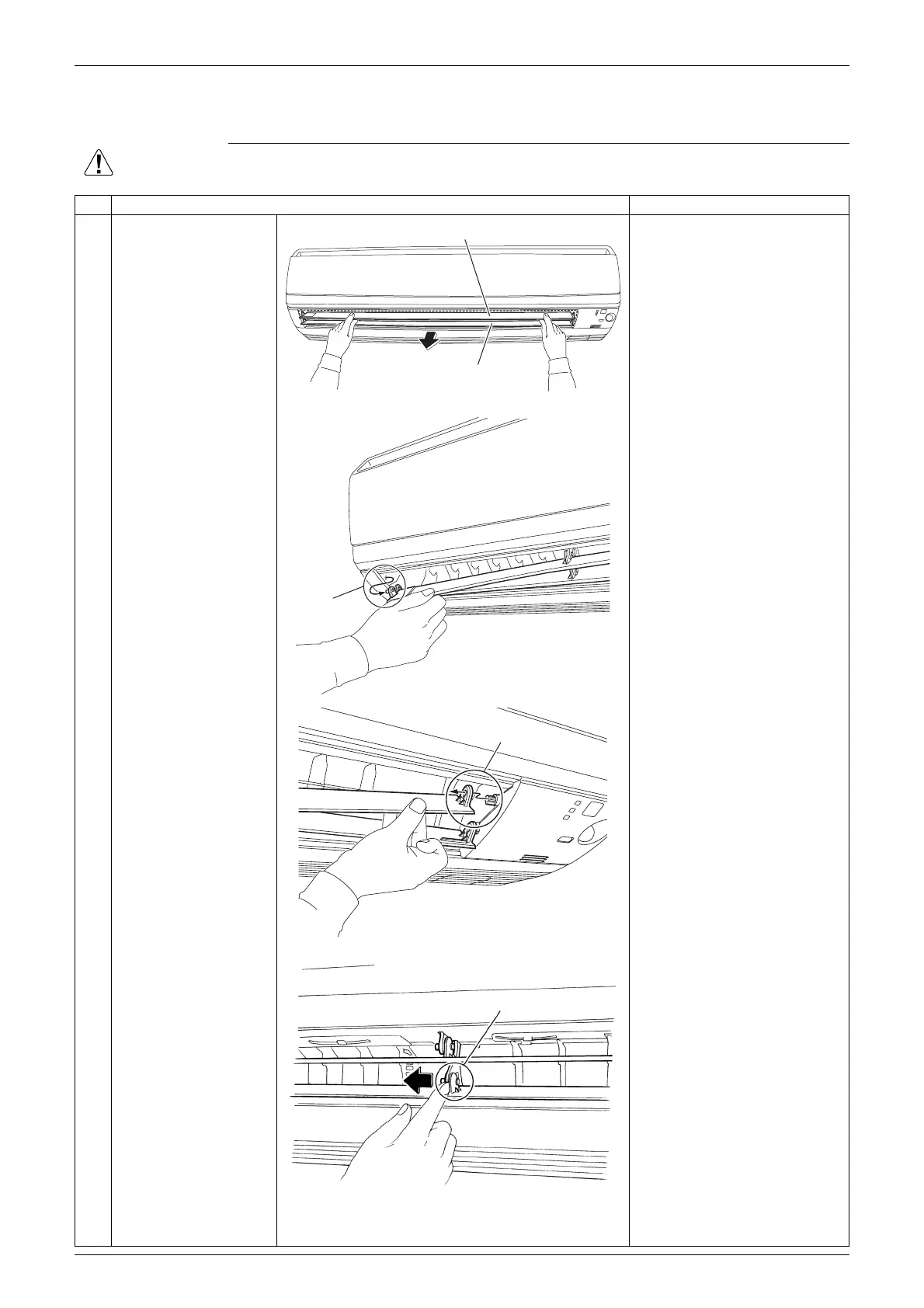

4. Horizontal Blades
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Open the horizontal
blades.

When reassembling, mount
the large horizontal blade to
the upper position and the
small horizontal blade to the
lower position.
2 Release the left shaft of
the horizontal blade
(large).
3 Release the right shaft
of the horizontal blade
(large).

Reassembling procedure
1. Fit the horizontal blade to the
right shaft first. Make sure to
rotate the horizontal blade so
the shaft fits correctly.
2. Fit the horizontal blade to the
center and left shafts.
4
5
Release the 2 center
shafts and remove the
horizontal blade (large).
Remove the horizontal
blade (small) in the
same way.
Horizontal blade (small)
Horizontal blade (large)
(R11335)
Left shaft
(R11336)
Right shaft
(R23405)
Center shaft
(R2765)
