Daikin FTKC50QVM - Remove the swing motor for horizontal blades

Drain Pan / Swing Motors Si041652EB
16 Removal Procedure

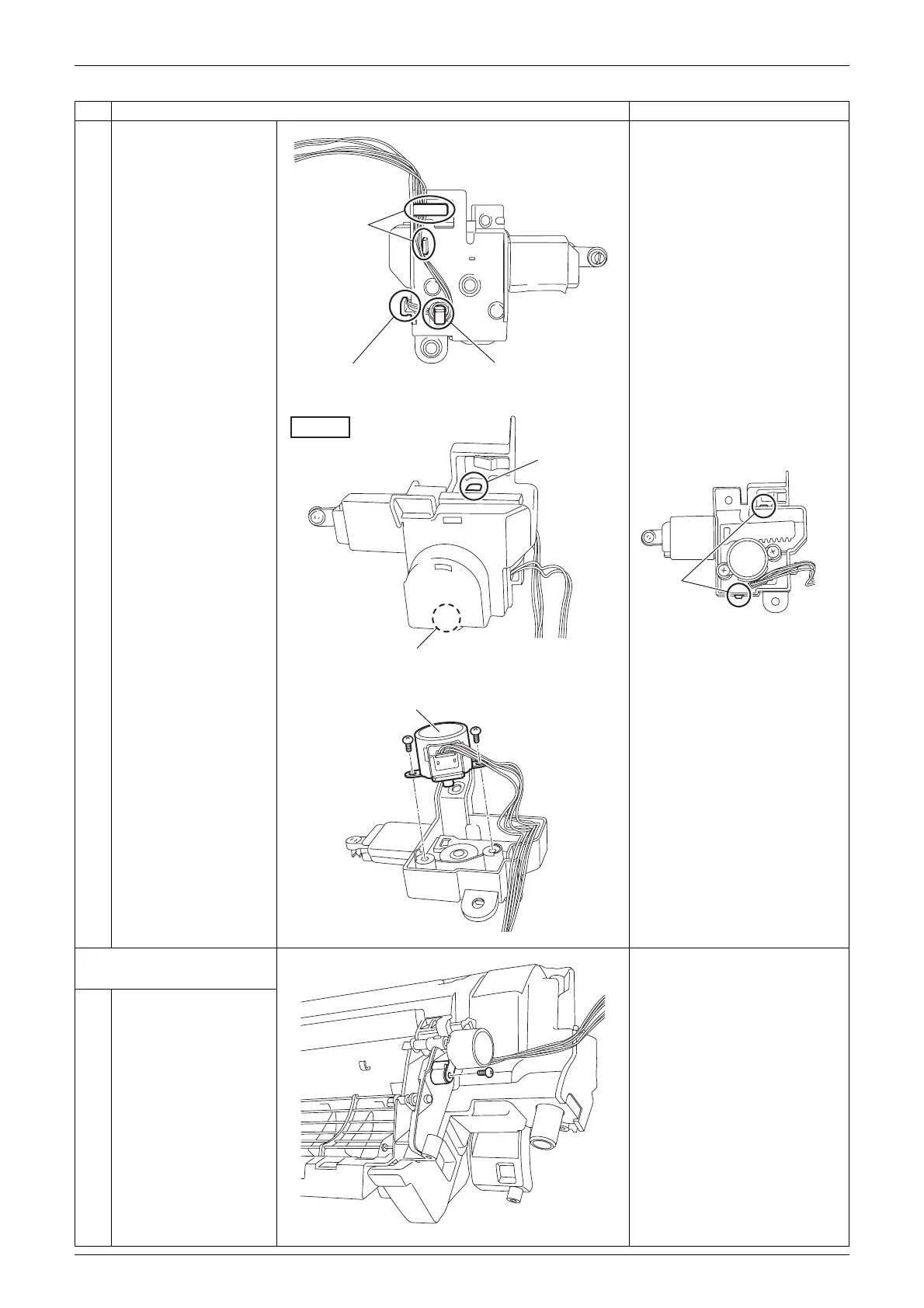

4 Release the harness
from the 3 hooks and
the groove.

When reassembling, make
sure to wrap the harness
around the hook (1)
counterclockwise.
5 Unfasten the 2 hooks.

When reassembling, make
sure that the 2 hooks are
securely fastened.
6 Remove the 2 screws
and remove the swing
motor for vertical
blades.
3. Remove the swing motor
for horizontal blades.
1 Remove the screw.
Step Procedure Points
Groove
Hook (1)
Hook
(R22926)
Hook
Hook
(R22927)
Back view
Hook
(R22928)
Swing motor for vertical blade
(R22929)
(R22930)
