Si041652EB Drain Pan / Swing Motors
Removal Procedure 17

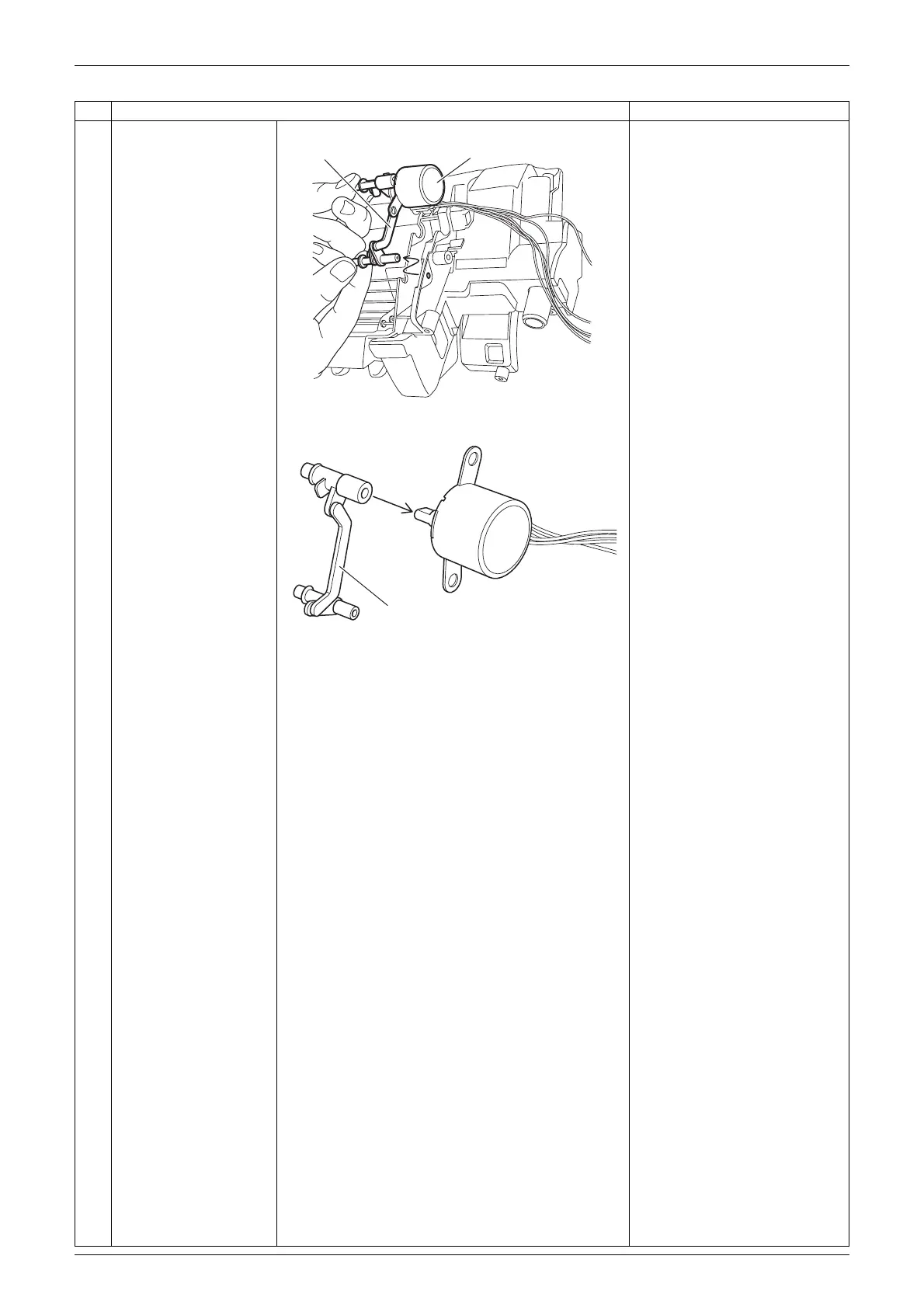

2 Remove the swing
motor for horizontal
blades together with the
link shaft ASSY.
3 Remove the swing
motor for horizontal
blades from the link
shaft ASSY.
Step Procedure Points
Swing motor for horizontal blade
Link shaft ASSY
(R24092)
Link shaft ASSY
(R23579)
