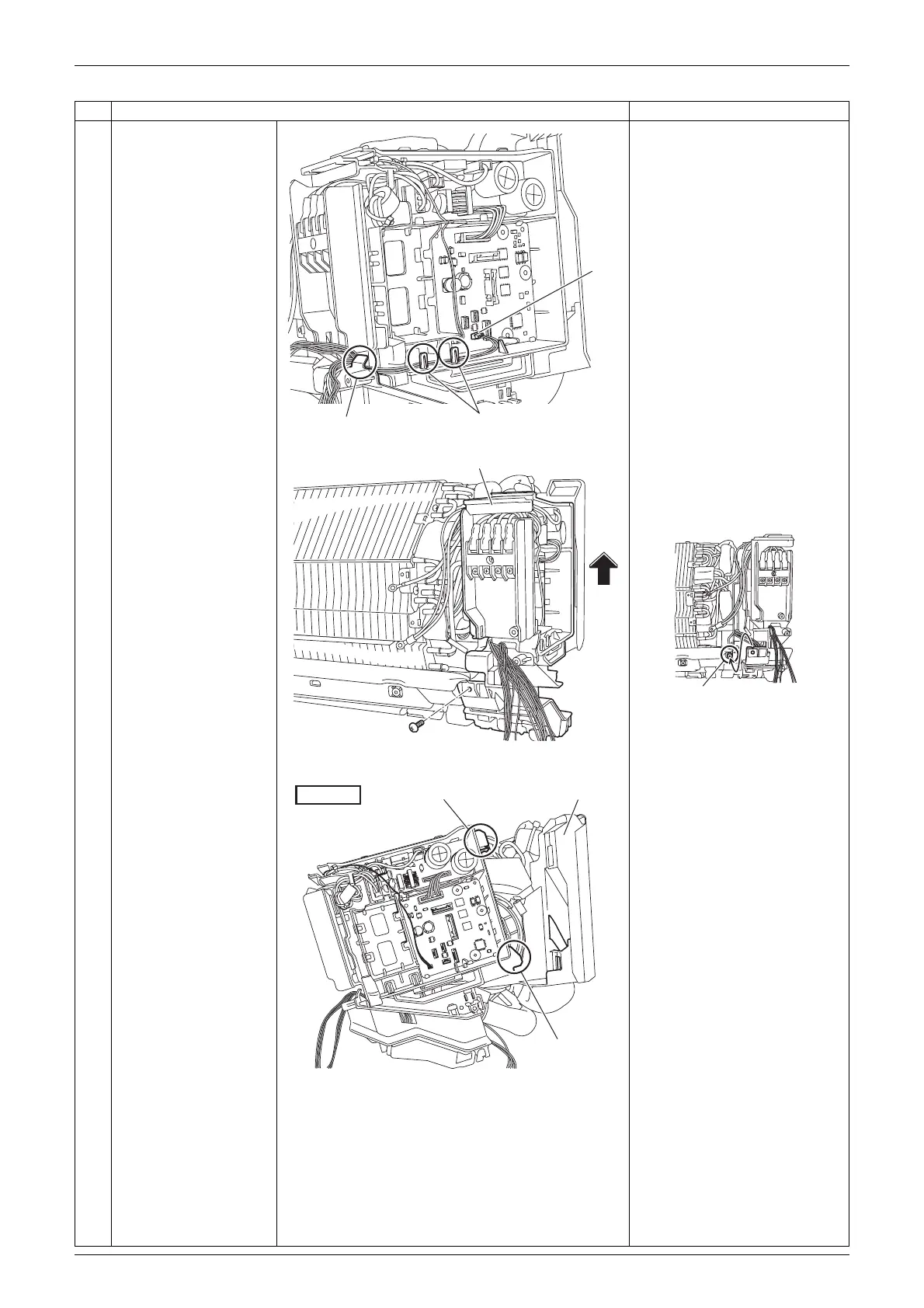

Si041652EB Electrical Box
Removal Procedure 9
12
13
Disconnect the
connector [S3].
Release the harnesses
from the 2 hooks and
the groove.
[S3]: INTELLIGENT EYE sensor
PCB
14
15
Remove the screw of
the electrical box.
Slightly lift the electrical
box and remove it.

When reassembling, make
sure the hook at the front of
the electrical box is securely
fastened.

When reassembling, make
sure that the 2 hooks are
securely fastened to the
bottom frame.
Step Procedure Points
[S3]
Hook
Groove
(R24089)
Electrical box
(R22904)
Hook
(R22905)
Hook
Hook Bottom frame
(R24090)
Right view
