Electrical Box Si041652EB
8 Removal Procedure
6
7
Disconnect the
connector [S6].
Release the harnesses
from the 2 hooks and
the groove.
[S6]: swing motor for horizontal
blades
8
9
Disconnect the
connector [S11].
Release the harnesses
from the 2 hooks and
the groove.
[S11]: swing motor for vertical
blades

Some models do not have
the harness for [S11].
10
11
Disconnect the
connector [S26].
Release the harnesses
from the 3 hooks and
the groove.
[S26]: display/signal receiver
PCB
Step Procedure Points
Groove
Hook

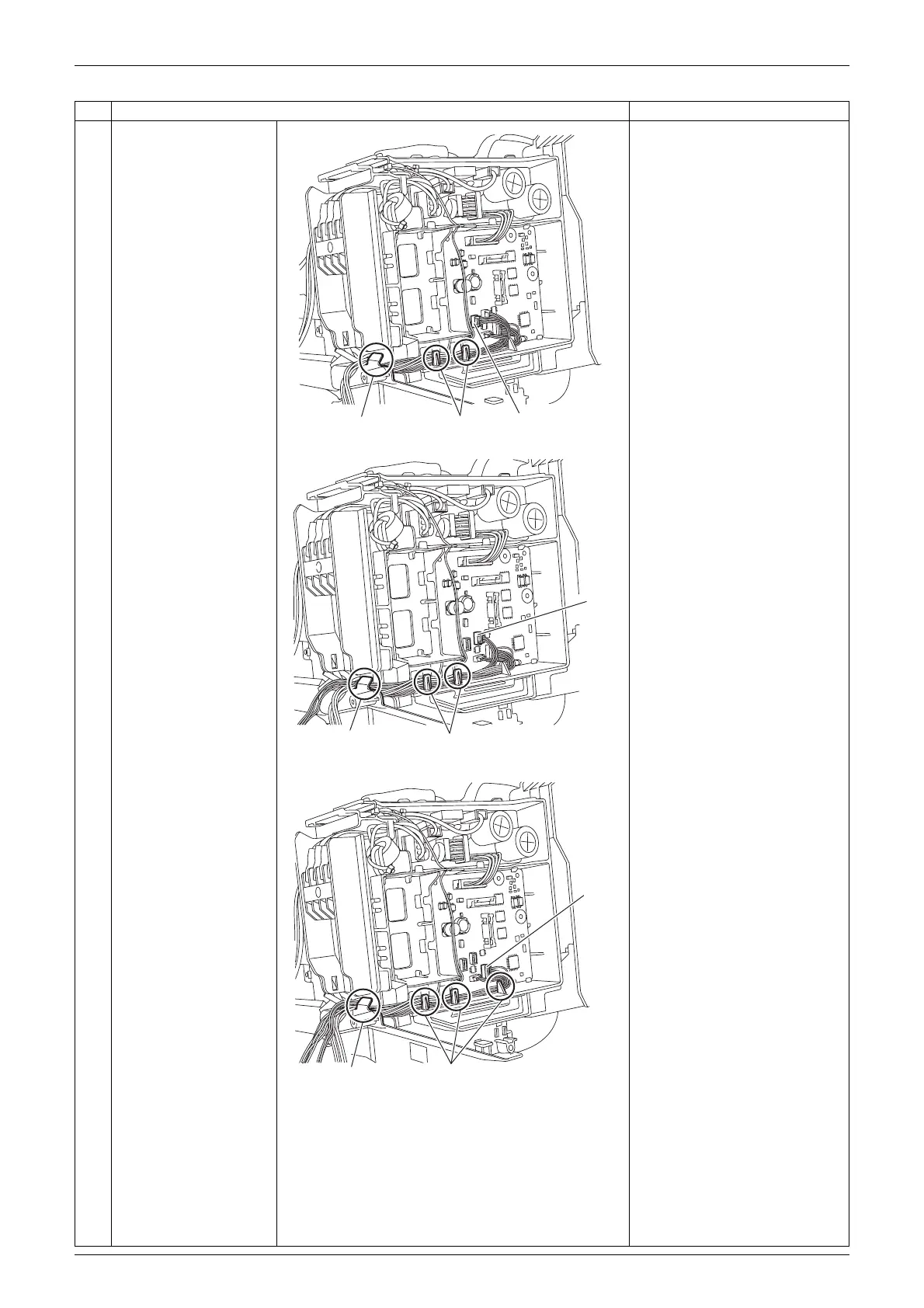

[S6]
(R23518)
[S11]
HookGroove
(R23519)
[S26]
Groove
Hook
(R23520)
